Specifications

Product Type	Surge Arrester
Brand	DEHN
Rated Cross-Section	1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Communication Ports	1
Rated Current	20 kA ((DC+/DC-) -> PE))
Rated Short Circuit Current	10 kA
Rated Voltage	150 VDC
Response Time	<= 25 ns
SPD Type	Type 2
Voltage Protection Level Up	<=0.8 kV, <=0.6 kV
Material	Thermoplastic
Mounting Type	35 mm DIN Rail
Depth	66 mm
Height	90 mm
Weight	269 g
Width	54 mm
Operating Temperature	-40 to 80 deg C
IP Rating	IP20
Standards and Approvals	KEMA, UL, CSA

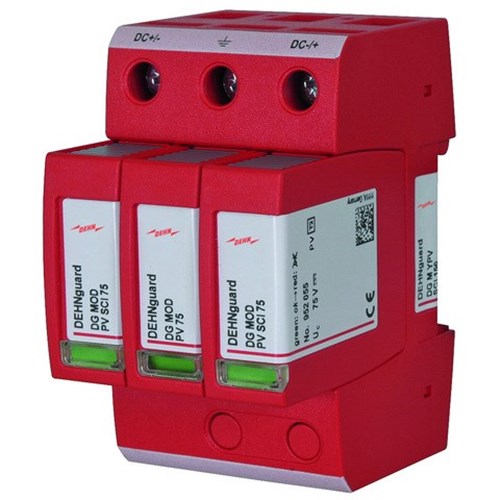

DEHN DGMYPVSCI150 Surge Arrester 20kA 150VDC 35mm DIN Rail Thermoplastic IP20
