Specifications

Product Type	Surge Arrester
Brand	DEHN
Series	DEHNguard modular (Y)PV SCI
Application	Modular multipole surge arrester with three-step d.c. switching device for use in PV systems; with remote signalling contact (floating changeover contact).
Max. Continuous Operating Voltage (AC/DC)	150 V
Rated Cross-Section	1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Suitable For	PV Systems
Communication Ports	1
Rated Current	20 kA ((DC+/DC-) -> PE))
Rated Short Circuit Current	10 kA
Response Time	<= 25 ns
SPD Type	Type 2
Voltage Protection Level Up	<= 0.8 kV
Max. Discharge Current Imax (8/20µs)	20 kA
Short Circuit Current Rating	10 kA
Alarm Contact	Changeover contact
Nominal Discharge Current Inom (8/20µs)	10 kA
Material	Thermoplastic
Mounting Method	35 mm DIN rails acc. to EN 60715
Mounting Type	35 mm DIN Rail
Terminal Size	1.5 to 35 mm2
Depth	66 mm
Height	90 mm
Weight	276 g
Width	54 mm
No. of Modules Width	3
Operating Temperature	-40 to 80 degC
IP Rating	IP20
Standards and Approvals	KEMA, UL, CSA

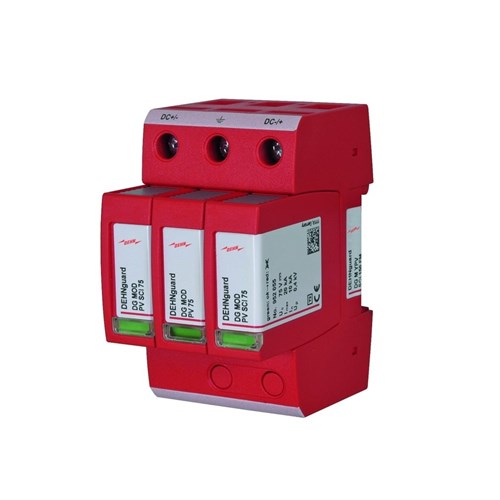

DEHN DGMYPVSCI150FM Type-2 Surge Arrester 20kA 35mm DIN Rail Thermoplastic IP20
