Specifications

Product Type	Lightning current arrester
Brand	DEHN
Series	DEHNgap
Application	N-PE lightning current arrester for protecting low-voltage consumer's installations against surges and even direct lightning strikes, particularly for use in TT systems.
Lightning Impulse Current Iimp (10/350µs)	100 kA
Max. Continuous Operating Voltage (AC/DC)	255 V AC
Rated Cross-Section	10 sq-mm Solid/Flexible, 50 sq-mm Stranded, 35 sq-mm Flexible
Suitable For	TT Systems
Communication Ports	1
Rated Voltage	255 VAC
Short Circuit Capacity	100 kArms
Response Time	<= 100 ns
SPD Type	Type 1, Type 2, Class I, Class II
Voltage Protection Level Up	1.5 kV
Alarm Contact	Changeover contact
No. of Poles	1
Material	Thermoplastic
Mounting Method	35 mm DIN rails acc. to EN 60715
Mounting Type	35 mm DIN Rail
Terminal Size	10 to 50 mm2
Depth	66 mm
Height	150 mm
Weight	370 g
Width	36 mm
No. of Modules Width	2
Operating Temperature	-40 to 80 degC
IP Rating	IP20
Standards and Approvals	KEMA

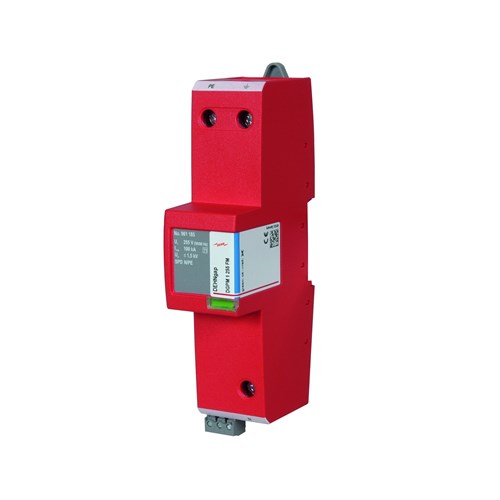

DEHN DGPM1255FM Lightning Current Arrester 100kA 255VAC 35mm DIN Rail 36mm W 66mm D 150mm H Thermoplastic IP20
