Specifications

Product Type	Lightning current arrester
Brand	DEHN
Series	DEHNgap
Application	N-PE lightning current arrester for protecting low-voltage consumer's installations against surges and even direct lightning strikes, particularly for use in TT systems.
Lightning Impulse Current Iimp (10/350µs)	100 kA
Max. Continuous Operating Voltage (AC/DC)	255 V AC
Rated Cross-Section	1 sq-mm Solid/Flexible, 2.5 sq-mm Solid/Flexible
Communication Ports	1
Rated Voltage	255 VAC
Short Circuit Capacity	100 kArms
Response Time	<= 100 ns
SPD Type	Type 1, Class I
Voltage Protection Level Up	2.5 kV
No. of Poles	1
Material	Thermoplastic
Mounting Method	N busbars, min. 35 mm2
Terminal Size	35 to 50 mm2
Depth	100 mm
Height	89 mm
Weight	507 g
Width	72 mm
Operating Temperature	-40 to 80 degC

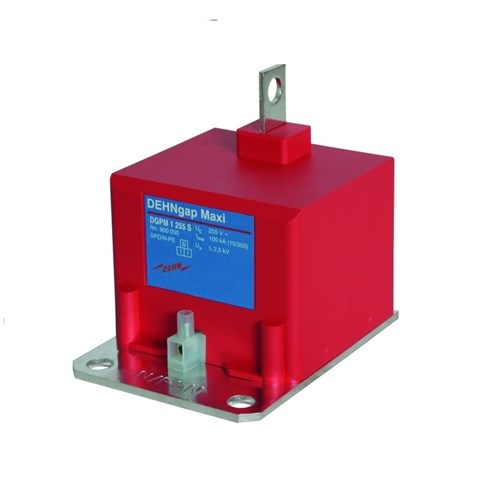

DEHN DGPM1255S Lightning Current Arrester 100kA 255VAC 72mm W 89mm D 100mm H Thermoplastic
