Specifications

Product Type	Surge arrester
Brand	DEHN
Series	DEHNguard S
Application	For protecting low-voltage consumer's installations against surges
Max. Backup Fuse	125 A gG
Max. Continuous Operating Voltage (AC/DC)	48 V AC, 60 V DC
Rated Cross-Section	1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Breaking Capacity	125 A
Communication Ports	1
Rated Current	7.5 kA
Rated Short Circuit Current	50 kA
Rated Voltage	42 V
Nominal Voltage	42 V AC
Response Time	<= 25 ns
SPD Type	Type 2
Voltage Protection Level Up	0.33 kV
Max. Discharge Current Imax (8/20µs)	25 kA
Short Circuit Current Rating	50 kA
Alarm Contact	Changeover contact
Nominal Discharge Current Inom (8/20µs)	7.5 kA
No. of Poles	1
Material	Thermoplastic
Mounting Method	35 mm DIN rails acc. to EN 60715
Mounting Type	35 mm DIN Rail
Terminal Size	1.5 to 35 mm2
Depth	66 mm
Height	90 mm
Weight	123 g
Width	18 mm
No. of Modules Width	1
Operating Temperature	-40°C to 80°C
IP Rating	IP20
Standards and Approvals	EN 61643-11

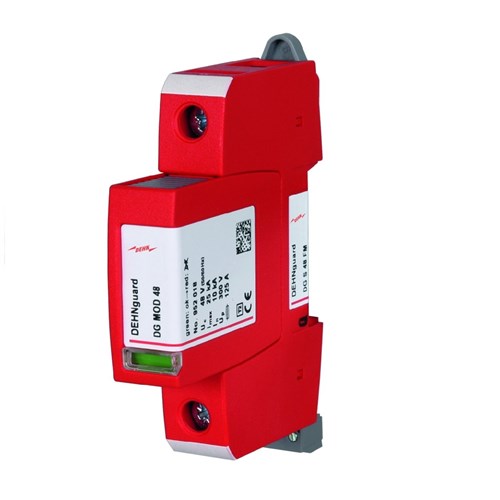

DEHN DGS48FM Type-2 Surge Arrester With Remote Sign Contact 1-P 7.5kA 42V 35mm DIN Rail IP20
