Specifications

Product Type	Type-2 Surge Arrester
Brand	DEHN
Cross Section	1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Degree of Protection	IP20
Depth	66 mm
Height	98 mm
Interrupt Rating	35 A
Material	Thermoplastic
Mounting Type	35 mm DIN Rail
Number of Poles	1
Number of Ports	1
Operational Temperature	-40 to 80 deg C
Rated Current	12.5 kA
Rated Short Circuit Current	25 kA
Rated Voltage	48 V
Response Time	<= 25 ns
SPD Class	Type 2
Standards and Approvals	EN 61643-11
Voltage Protection Level	<=0.5 kV
Weight	142 g
Width	27 mm

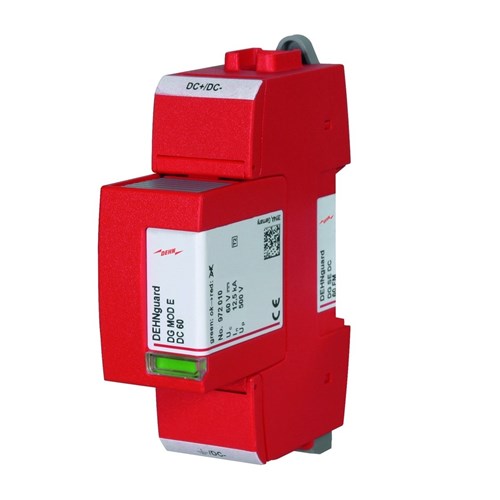

DEHN DGSEDC60FM Type-2 Surge Arrester 1-P 12.5kA 48V 35mm DIN Rail Thermoplastic IP20
