Specifications

Product Type	Surge arrester
Brand	DEHN
Series	DEHNguard ME/SE DC (FM)
Application	For protecting d.c. consumer installations
Max. Backup Fuse	80 A gPV
Max. Continuous Operating Voltage (AC/DC)	900 V DC
Rated Cross-Section	1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Breaking Capacity	80 A
Communication Ports	1
Rated Current	12.5 kA
Rated Short Circuit Current	25 kA
Rated Voltage	750 V
Nominal Voltage	750 V DC
Response Time	<= 25 ns
SPD Type	Type 2
Voltage Protection Level Up	3 kV
Short Circuit Current Rating	25 kA
Alarm Contact	Changeover contact
Nominal Discharge Current Inom (8/20µs)	12.5 kA
No. of Poles	1
Material	Thermoplastic
Mounting Method	35 mm DIN rails acc. to EN 60715
Mounting Type	35 mm DIN Rail
Terminal Size	1.5 to 35 mm2
Depth	66 mm
Height	98 mm
Weight	172 g
Width	27 mm
No. of Modules Width	1.5
Operating Temperature	-40°C to 80°C
IP Rating	IP20
Standards and Approvals	EN 61643-11

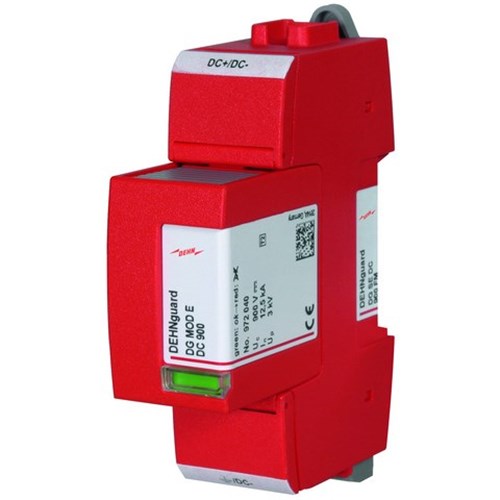

DEHN DGSEDC900FM Surge Arrester 12.5kA 750V 35mm DIN Rail Mount Thermoplastic IP20
