Specifications

Product Type	Surge arrester
Brand	DEHN
Series	DEHNguard SE H FM
Application	For protecting low-voltage consumer's installations against surges
Max. Backup Fuse	100 A gG
Max. Continuous Operating Voltage (AC/DC)	1000 V AC
Rated Cross-Section	1.5 sq-mm Solid/Flexible, 35 sq-mm Stranded, 25 sq-mm Flexible
Breaking Capacity	100 A
Communication Ports	1
Rated Current	15 kA
Rated Short Circuit Current	25 kA
Rated Voltage	690 V
Nominal Voltage	690 V AC
Response Time	<= 25 ns
SPD Type	Type 2
Voltage Protection Level Up	5 kV
Max. Discharge Current Imax (8/20µs)	40 kA
Short Circuit Current Rating	25 kA
Alarm Contact	Changeover contact
Nominal Discharge Current Inom (8/20µs)	15 kA
No. of Poles	1
Material	Thermoplastic
Mounting Method	35 mm DIN rails acc. to EN 60715
Mounting Type	35 mm DIN Rail
Terminal Size	1.5 to 35 mm2
Depth	76 mm
Height	98 mm
Weight	207 g
Width	27 mm
No. of Modules Width	1.5
Operating Temperature	-40°C to 80°C
IP Rating	IP20
Standards and Approvals	EN 61643-11

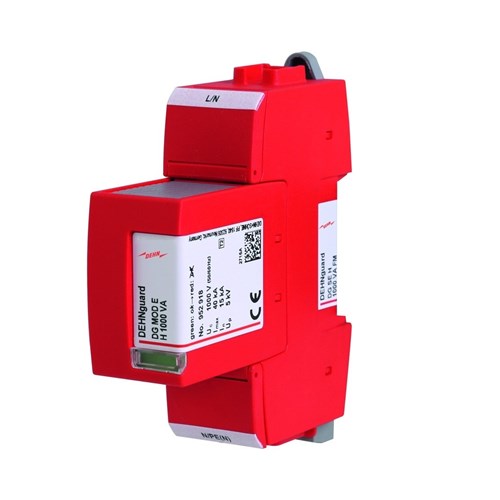

DEHN DGSEH1000VAFM Type-2 Surge Arrester 1-P 15kA 690V 35mm DIN Rail Thermoplastic IP20
