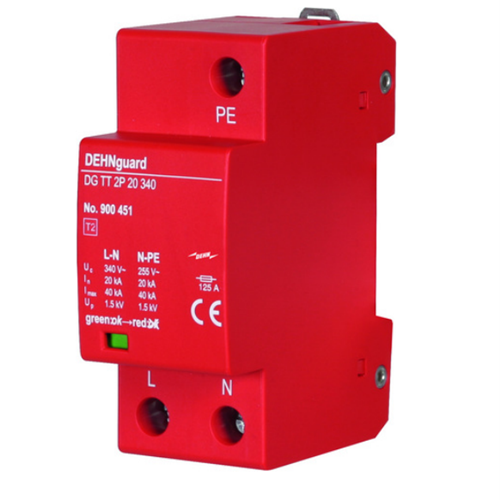

DEHN DGTT2P20340 Surge Arrester 2-P 20kA 230V DIN Rail Mount

Product Code: DGTT2P20340

1

Specifications

Product Type	Surge Arrester
Brand	DEHN
Cross Section	2.5 sq-mm, 25 sq-mm, 16 sq-mm
Interrupt Rating	125 A
Mounting Type	DIN Rail
Number of Poles	2
Operational Temperature	-40 to 80 deg C
Overcurrent Protection	Max. 125 A gG Main Side
Rated Current	20 kA
Rated Voltage	230 V
Response Time	<= 25 ns (L-N), <= 100 ns (N-PE)
SPD Class	Type 2, Class II
Suitable For Use With	Indoor Installation Only
Voltage Protection Level	<=1.5 kV
