Specifications

Product Type	Two-pole surge arrester
Brand	DEHN
Series	DEHNrail modular
Application	For protecting terminal devices of industrial electronics equipment
Max. Backup Fuse	25 A gG or B 25 A
Max. Continuous Operating Voltage (AC/DC)	30 V AC, 30 V DC
Rated Current	1 kA
Rated Short Circuit Current	6 kA
Rated Voltage	30 VAC
Nominal Voltage	24 V AC
Response Time	<= 25 ns, <= 100 ns (L/N-PE)
SPD Type	Type 3
Voltage Protection Level Up	180 V, 630 V
Short Circuit Current Rating	6 kA
Nominal Discharge Current Inom (8/20µs)	1 kA
No. of Poles	2
Mounting Method	35 mm DIN rails acc. to EN 60715
Mounting Type	DIN Rail
Terminal Size	0.5 to 4 mm2 solid, 0.5 to 2.5 mm2 flexible
Depth	66 mm
Height	90 mm
Length	0.11 mm
Weight	0.09 kg
Width	18 mm
No. of Modules Width	1
Operating Temperature	-40 to 80 degC
IP Rating	IP20

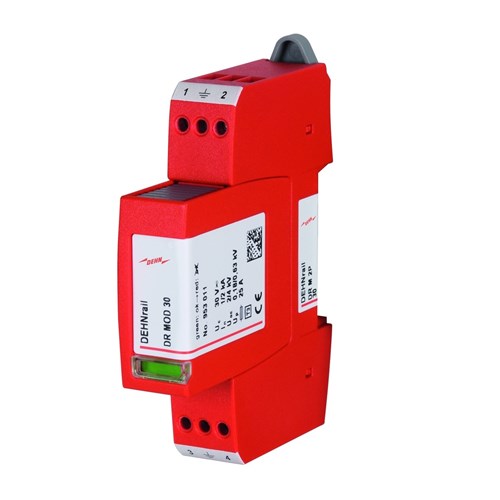

DEHN DRM2P30 M-Surge Arrester 1kA 30VAC DIN Rail Mount IP20
