Specifications

Product Type	Four-pole protection module
Brand	DEHN
Series	Protection module for DEHNrail modular
Application	For DEHNrail M 4P 255 (FM) of the Red/Line series according to EN 61643-11
Max. Continuous Operating Voltage (AC/DC)	255 V AC, 255 V DC
Suitable For	Dehnrail M Surge Arrester
Rated Current	3 kA
Rated Voltage	255 VAC
Voltage Protection Level Up	1000 V
Nominal Discharge Current Inom (8/20µs)	3 kA
No. of Poles	4
Depth	51 mm
Height	45 mm
Length	0.08 mm
Weight	0.08 kg
Width	36 mm

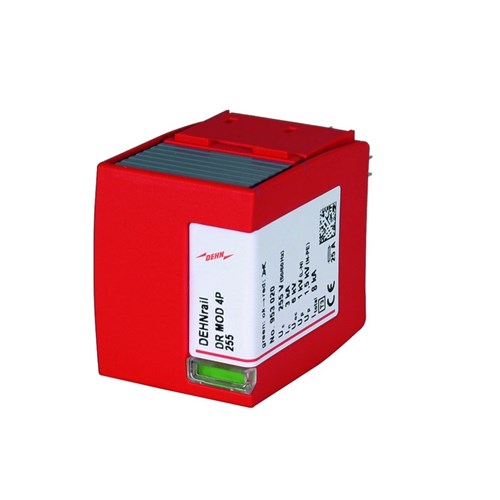

DEHN DRMOD4P255 Protection Module 3kA 255VAC 0.08mm L 0.06mm W 0.04mm D
