Specifications

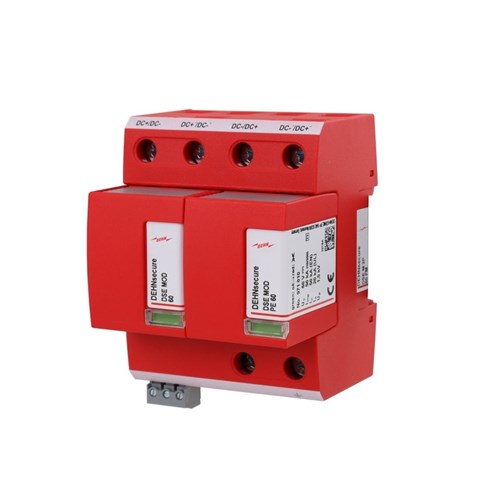

Product Type	DEHNsecure M 2P (FM)
Brand	DEHN
Series	DEHNsecure modular
Application	For protecting d.c. consumer installations against surges and even direct lightning strikes.
Lightning Impulse Current Iimp (10/350µs)	25 kA, 50 kA
Max. Backup Fuse	250 A gG
Max. Continuous Operating Voltage (AC/DC)	60 V DC
Suitable For	DC Circuits
Rated Short Circuit Current	25 kA
Rated Voltage	60 VDC
Response Time	<= 100 ns
SPD Type	Type 1
Voltage Protection Level Up	1.5 kV
Short Circuit Current Rating	17 kA
Alarm Contact	Changeover contact
No. of Poles	2
Mounting Method	35 mm DIN rails acc. to EN 60715
Mounting Type	DIN Rail
Terminal Size	10 to 50 mm2
Depth	0.09 mm
Length	0.12 mm
Weight	0.68 kg
Width	0.09 mm
No. of Modules Width	4
Operating Temperature	-40°C to 80°C
IP Rating	IP20

DEHN DSEM2P60FM Type-1 Lightning Current Arrester 25kA 50kA 60VDC DIN Rail Mount 0.12mm L 0.09mm W IP20
