Specifications

Product Type	DEHNvenCI 255 (FM)
Brand	DEHN
Series	DEHNvenCI
Application	Single-pole combined lightning current and surge arrester with integrated backup fuse ensures maximum system availability. For protecting low-voltage consumer installations against surges and even direct lightning strikes.
Lightning Impulse Current Iimp (10/350µs)	25 kA
Max. Continuous Operating Voltage (AC/DC)	255 V AC
Suitable For	Power Supply Systems
Rated Voltage	255 VAC
Short Circuit Capacity	50 kArms
Nominal Voltage	230 V AC
Voltage Protection Level Up	1.5 kV
Short Circuit Current Rating	100 kA
Nominal Discharge Current Inom (8/20µs)	25 kA
No. of Poles	1
Material	Thermoplastic
Mounting Method	35 mm DIN rails acc. to EN 60715
Mounting Type	DIN Rail
Terminal Size	10 to 50 mm2
Depth	36 mm
Height	150 mm
Weight	477.3 g
Width	72 mm
No. of Modules Width	2
Operating Temperature	-40°C to 80°C
IP Rating	IP20
Standards and Approvals	EN 61643-11

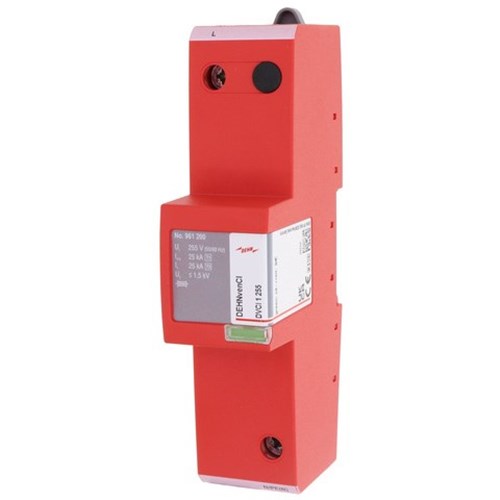

DEHN DVCI1255 Combined Lightning Current and Surge Arrester With Fuse 25kA 1-P 255VAC IP20
