Specifications

Product Type	Angle Fixed Ball Point With Threaded Pin and Nut
Brand	DEHN
Connection Type	20 mm Fixed Ball Point
Rated Cross-Section	70 sq-mm
Suitable for	Earthing Rods
Rated Current	19500 A, 13800 A
Material	Electrolytic Copper, Tin Coated Copper
Mounting Type	Thread Bolt
Thread Size	M12 x 35 mm
Tightening Torque	50-65 N-m
Weight	219 g
Scan Angle	45 deg
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100), DIN 43673-1

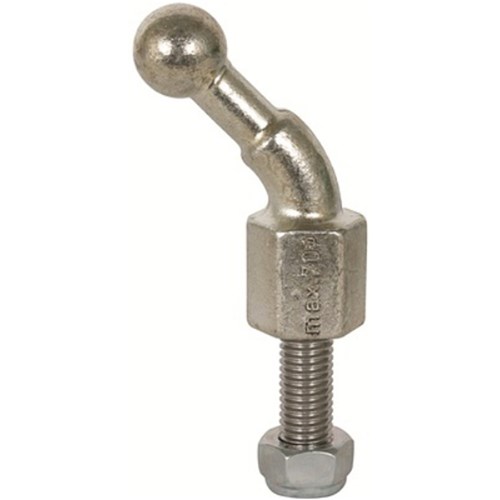

DEHN KFP20W45M1235SSM Angled Fixed Ball Point With Threaded Pin and Nut 19500A 13800A 20mm Thread Bolt Mount M12x35mm
