Specifications

Product Type	90 degrees angled with Threaded Pin and Self-locking Nut
Brand	DEHN
Series	Fixed Ball Points
Application	Line and earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.
Connection Type	20 mm Fixed Ball Point
Max. Short Circuit Current	19500 A
Rated Cross-Section	70 sq-mm
Suitable For	Earthing Rods
Fixed Ball Point Diameter	20 mm
Rated Current	19500 A, 13800 A
Cable Cross Section	70 mm2
Material	E-Cu/gal Sn, StSt A2-70
Mounting Type	Thread Bolt
Scan Angle	90 deg
Thread Size	M12 x 35 mm
Tightening Torque	50-65 N-m
Weight	259.2 g
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100), DIN 43673-1

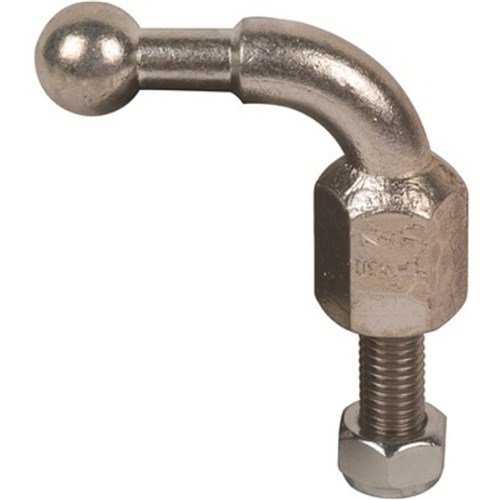

DEHN KFP20W90M1235SSM Angled Fixed Ball Point With Threaded Pin and Nut 19500A 13800A 20mm Thread Bolt Mount M12x35mm
