Specifications

Product Type	Fixed Ball Point
Brand	DEHN
Connection Type	25 mm Fixed Ball Point
Cross Section	150 sq-mm
Material	Electrolytic Copper, Tin Coated Copper
Mounting Type	Thread Bolt
Rated Current	42000 A, 29600 A
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100), DIN 43673-1
Suitable For Use With	Earthing Rods
Thread Size	M12 x 45 mm
Tightening Torque	50-65 N-m
Weight	278 g

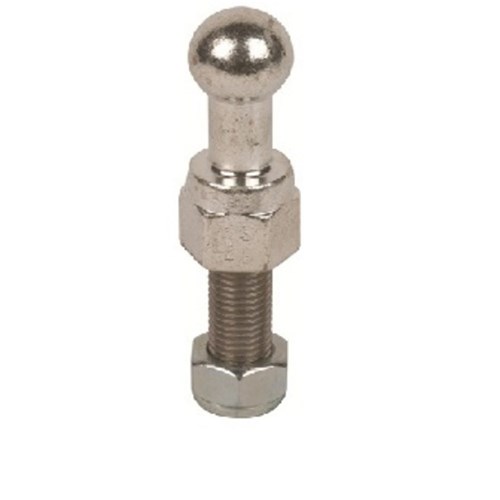

DEHN KFP25M1245SSM Fixed Ball Point 42000A 29600A 25mm Thread Bolt Mount M12x45mm
