Specifications

Product Type	Straight with Threaded Pin and Self-locking Nut
Brand	DEHN
Series	Fixed Ball Points
Application	Line and earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.
Connection Type	25 mm Fixed Ball Point
Max. Short Circuit Current	42000 A
Rated Cross-Section	150 sq-mm
Suitable For	Earthing Rods
Fixed Ball Point Diameter	25 mm
Rated Current	42000 A, 29600 A
Cable Cross Section	150 mm2
Material	E-Cu/gal Sn, StSt A2-70
Mounting Type	Thread Bolt
Thread Size	M16 x 45 mm
Tightening Torque	100-110 N-m
Weight	318.9 g
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100), DIN 43673-1

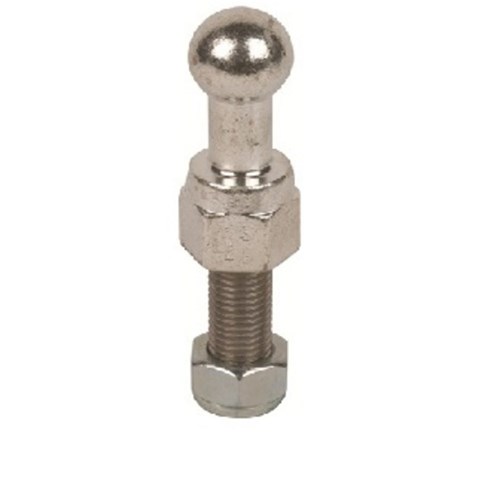

DEHN KFP25M1645SSM Straight Fixed Ball Point With Threaded Bolt and Nut 42000A 29600A 25mm Thread Bolt Mount M16x45mm
