Specifications

Product Type	45 degrees angled with Female Thread
Brand	DEHN
Series	Fixed Ball Points
Application	Line and earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.
Connection Type	25 mm Fixed Ball Point
Max. Short Circuit Current	26500 A
Rated Cross-Section	95 sq-mm
Suitable For	Earthing Rods
Fixed Ball Point Diameter	25 mm
Rated Current	26500 A, 18700 A
Cable Cross Section	95 mm2
Material	E-Cu/gal Sn, StSt A2-70
Mounting Type	Internal Thread
Scan Angle	45 deg
Thread Size	M12
Weight	357.2 g
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100), DIN 43673-1

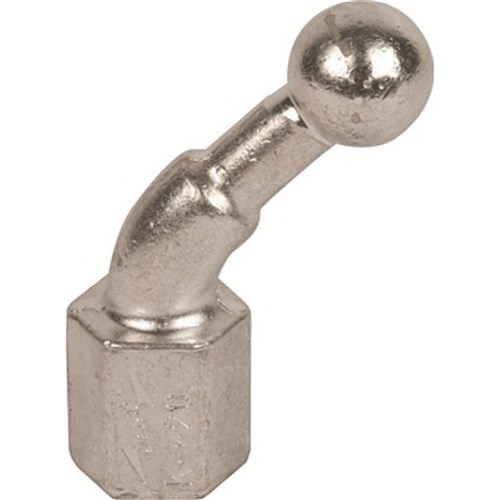

DEHN KFP25W45M12 Angled Fixed Ball Point With M12 Female Thread 26500A 18700A 25mm Internal Thread M12
