Specifications

Product Type	Combined lightning current and surge arrester
Brand	DEHN
Series	DGM YPV
Application	PV systems
Lightning Impulse Current Iimp (10/350µs)	5 kA
DC Sparkover voltage	700 V
Voltage Protection Level Up	≤ 4 kV
Maximum Discharge Current Imax (8/20µs)	40 kA
Short Circuit Current Rating	10 kA
Switching Capacity (AC)	250 V / 0.5 A
Switching Capacity (DC)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Nominal Discharge Current Inom (8/20µs)	20 kA
Max. PV Voltage [DC+ -> DC-] (UCPV)	1170 V
Cross-Sectional Area	35 mm^2 stranded / 25 mm2 flexible
Material	thermoplastic
Mounting Method	35 mm DIN rails
Depth	90mm
Height	73mm
Weight	322 g
Width	54mm
Operating Temperature	-40 °C ... +80 °C
IP Rating	IP 20

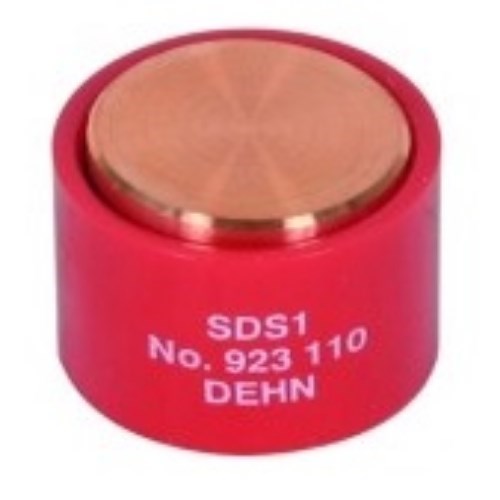

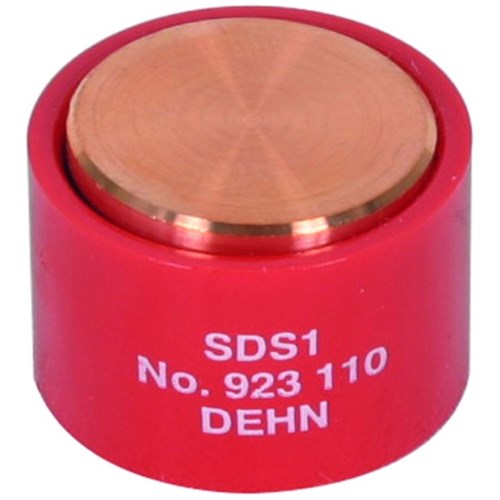

DEHN SDS1Voltage Limit Device 25kA 600VDC
