Specifications

Product Type	Bypass box
Brand	Delta
Series	PDB
Application	Maintenance bypass for Delta N Series UPS
Connection Type	Terminal Block
1P / 3P / DC	1P
kVA / kW (at unity Power Factor)	6-10kVA
Maintenance Bypass	Manual maintenance bypass
Rated Current	63 A
Rated Frequency	50/60 Hz
Rated Power	6-10 kVA
Rated Voltage	200/208/220/230/240 VAC
Tower / Rack / Cabinet	Wall mount
Depth	408 mm
Height	142.7 mm
Weight	4 kg
Width	190 mm
Relative Humidity (Without condensation)	5-95%
Humidity	5 ~ 95% (non-condensing)
Operating Temperature	0 to 40 deg C
Standards and Approvals	IEC/EN 62040-1

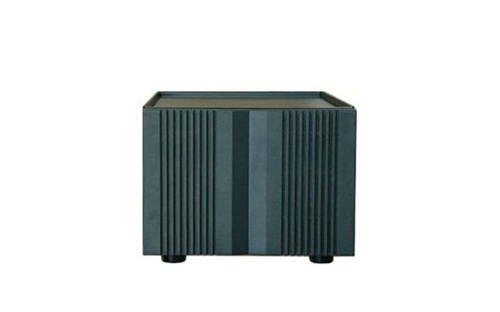

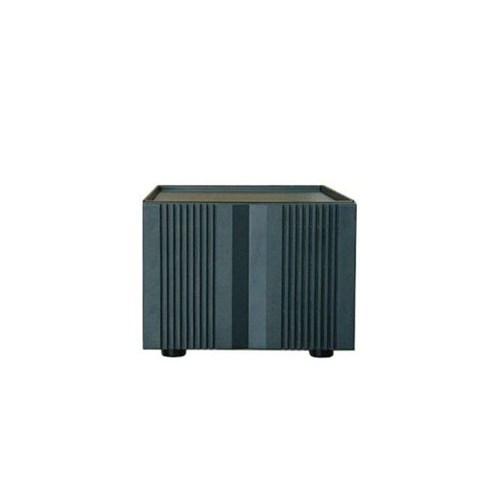

Delta PDB1511A530035 Bypass Switch 6-10kVA 200/208/220/230/240VAC
