Specifications

Product Type	Industrial Comp[uter
Brand	Emerson
Series	PACSystems RXi2-UP
Power Consumption	25W
Supply Voltage	24V DC (±25%) with surge protection
Memory Capacity	8GB RAM
Processor Type	Intel i5-7442EQ 2.1GHz 4 Cores/4 Threads
Operating System	Microsoft® Windows® 10 IoT 2019 LTSC Linux® Kernel 4.9 (not pre-loaded) VxWorks® 7.0 (not pre-loaded) Movicon.NExT 4.1 and above (pre-loaded options available) Pro.Lean™ (pre-loaded options available)
Hard Drive Capacity	128 GB SSD M.2
Housing Material	Rugged aluminum and stainless-steel
Mounting Method	Panel Mounting
Depth	108.5 mm
Height	252 mm
Width	203 mm
Storage Temperature	-40°C up to +85°C
Operating Temperature	0°C up to 60°C
IP Rating	IP20
Ethernet Port Speed	1 Gbps
Ethernet Ports	5x Gigabit Ethernet
Expandable Communications	Yes
Serial Ports	2 x RS-232, 2 xRS-422/RS-485
USB Port	4 x USB 3.0, 2 x USB 2.0
Wifi	No
Compliance Standards	IEC/UL62368, CE, FCC

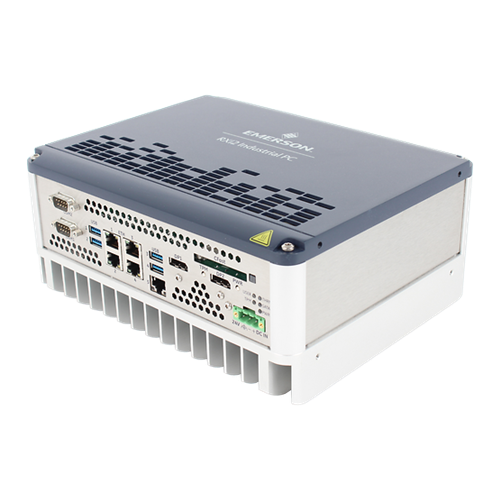

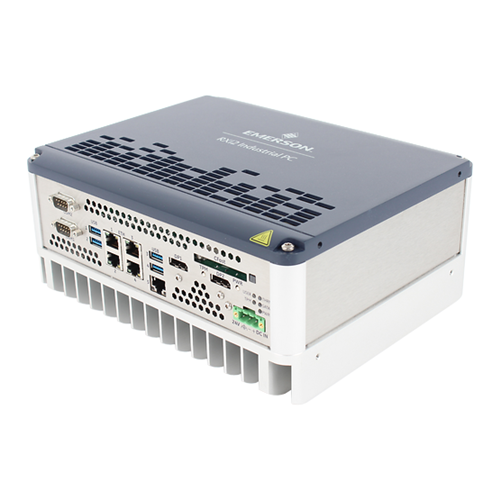

Emerson R2U0N1E1A1T0A Industrial PC Intel i5-7442EQ 2.1 GHz 128 GB SSD
