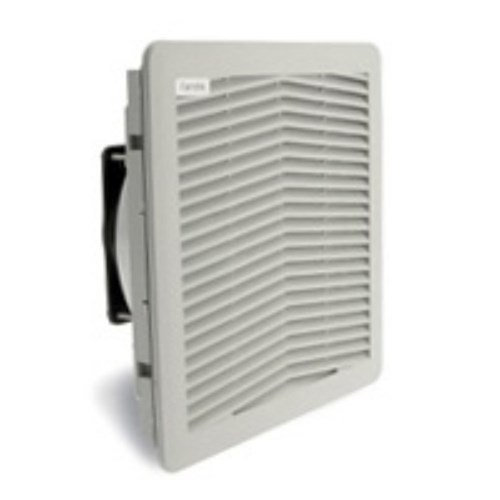

Fandis FPF15KGU230BE120 Fan Filter 360cu-m/h 230VAC 24 to 250VDC IP54 250W 250H Synthetic Fiber

Product Code: FPF15KGU230BE120

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Fan Filter
Brand FANDIS
Air Flow 360 cu-m/h
Colour Light Grey RAL 7035
Degree of Protection IP54
Depth 117 mm
Height 250 mm
Material Synthetic Fiber
Noise Level 60 dBA, 62 dBA
Operational Temperature -10 to 50 deg C
Rated Current 0.337 A, 0.442 A
Rated Frequency 50/60 Hz
Rated Power 78 W, 96 W
Rated Voltage 230 VAC, 24-250 VDC
Standards and Approvals CE, UKCA
Width 250 mm
Wire Cross Section 20-14 AWG

Documents

IPD Product Catalogue V17
FANDIS Datasheet
Instructions

Certificate

Certificate of Compliance
EU Declaration of Conformity
