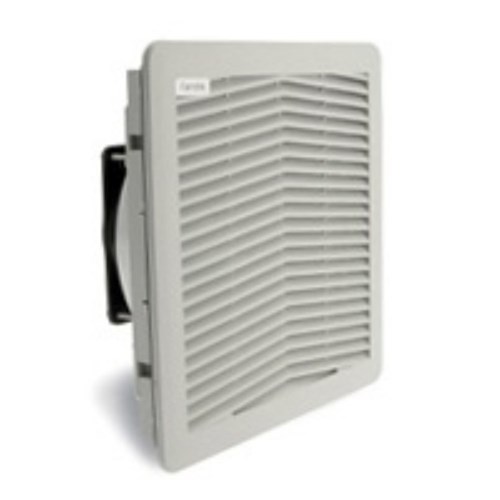

Fandis FPF20KGU230BER12 Fan Filter 650cu-m/h 230VAC 24 to 250VDC IP54 325W 325H Synthetic Fiber

Product Code: FPF20KGU230BER12

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Fan Filter
Brand FANDIS
Air Flow 650 cu-m/h
Colour Light Grey RAL 7035
Degree of Protection IP54
Depth 142 mm
Height 325 mm
Material Synthetic Fiber
Noise Level 72 dBA, 75 dBA
Operational Temperature -10 to 55 deg C
Rated Current 0.5 A, 0.72 A
Rated Frequency 50/60 Hz
Rated Power 111 W, 140 W
Rated Voltage 230 VAC, 24-250 VDC
Standards and Approvals CE, UKCA
Width 325 mm
Wire Cross Section 20-14 AWG

Documents

IPD Product Catalogue V17
FANDIS Datasheet
Instructions

Certificate

Certificate of Compliance
EU Declaration of Conformity
