Specifications

Product Type	Switch
Brand	Hirschmann
Series	RSP
Input Voltage	1 x 60 - 250 VDC (48V - 320 VDC) and 110 - 230 VAC (88 - 265 VAC)
No. of Ethernet Ports	8
Communication Ports	11
Rated Power	19 W
Rated Voltage	265 VAC
Redundancy	Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2), RSTP 802.1D-2004 (IEC62439-1), RSTP Guards Fast MRP (IEC62439-2), High Availability Seamless Redundancy Protocol (HSR) (IEC62439-3), Parallel Redundancy Protocol (PRP) (IEC62439-3)
Connectors/Input/Output	8 x RJ45; 3 x SFP slot FE
Mounting	DIN Rail
Mounting Type	DIN Rail
Depth	120 mm
Height	164 mm
Weight	1.2 Kg
Width	90 mm
Operating Temperature	0-+60 °C
IP Rating	IP20
Total Ports	11
Fiber Connector Type	SFP
Traffic Management	Independent VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS / Port Prioritization (802.1D/p), TOS/DS CP Prioritization, Interface Trust Mode, CoS Queue Management, Queue-Shaping / Max. Queue Bandwidth, Flow Control (802.3X), Egress Interface Shaping, Ingress Storm Protection, Jumbo Frames, VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN, IGMP Snooping/Querier per VLAN (v1/v2/v3), Unknown Multicast Filtering, Multiple VLAN Registration Protocol (MVRP), Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP)
Network Management	Dual Software Image Support, TFTP, SFTP. SCP. LLDP (802.1AB), LLDP-MED, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet
Standards and Approvals	CE, FCC, EN61131 IEC 61850-3, IEEE 1613

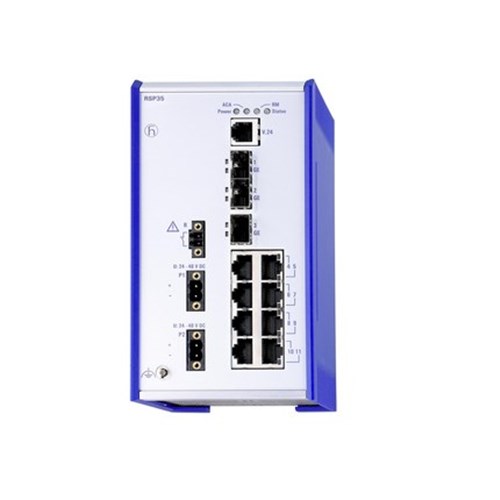

Hirschmann 942 053-004 Managed Industrial DIN Rail Switch 265VAC
