Product Code: 942 070-999-007

Specifications

Product Type	Firewall
Brand	Hirschmann
Series	OpenBAT-R / -F
Development Software	WLAN Controller, Industrial HiVision, LANConfig
Connectors	3× RP-SMA Female for each WLAN interface, requires antennas with RP-SMA Male connectors
Rated Power	max. 12.95W
Rated Voltage	Power 1: 24 VDC , Power 2: 24 VDC
Material	metal
Mounting Type	DIN-Rail
Depth	121 mm
Height	145 mm
Weight	1200 g
Width	121 mm
Storage Temperature	-40-+85 °C
Operating Temperature	0 -+60 °C
IP Rating	IP20
Port Type	Ethernet 1: ComboPort 10/100/1000 via RJ45 or SFP
USB Port	Can be disabled in software., USB Type A socket, compatible with ACA21-USB EEC and ACA22-USB EEC
Radio Frequency	Freely configurable between 2.4 GHz and 5 GHz independently on each WLAN interface: 2400 -2483.5 MHz (ISM) and 5170 -5850 MHz (additional regulatory restrictions apply depending on the country of operation)
Modulation	20M0F7D (DSSS/OFDM) @ 2.4 GHz, 20M0G7D (OFDM) @ 5 GHz, MCS 0 - MCS23
Radio Features	WLAN 1: 3x3 MIMO, up to 3 streams (configurable) . Integrated ESD protection, Clear Space®
Encryption	Open, WEP, 802.11i - WPA/WPA2 - Personal (PSK), 802.11i - WPA/WPA2 - Enterprise (802.1X: TLS, TTLS/PAP, TTLS/CHAP, TTLS/MSCHAP, TTLS/MSCHAPV2, TTLS/MD5, PEAP/MSCHAPV2), WPA3 Personal and Enterprise (AES-CCMP-128, AES-CCMP-256, AES-GCMP-128, AES-GCMP-256)
Communication Protocols	IEEE 802.11a/b/g/n WLAN as per IEEE 802.11n
Standards and Approvals	IEC/EN 60950-1, IEC 62368-1:2018; EN IEC 62368-1:2020+A11:2020 EN50121-4, EN50121-3-2 EN 300 328 (2.4 GHz), EN 301 893 (5 GHz), EN 302 502 (5.8 GHz)

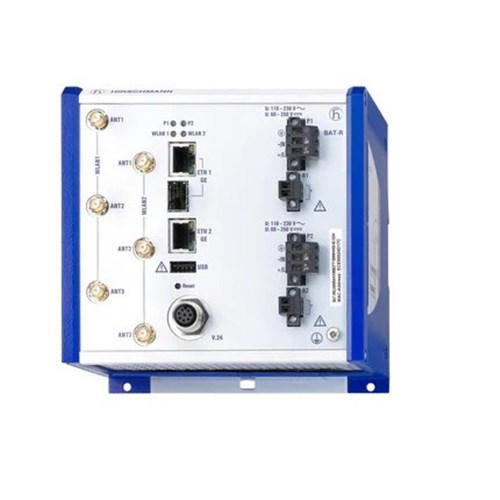

Hirschmann 942 070-999-007 Wireless Access Point

Product Code: 942 070-999-007
