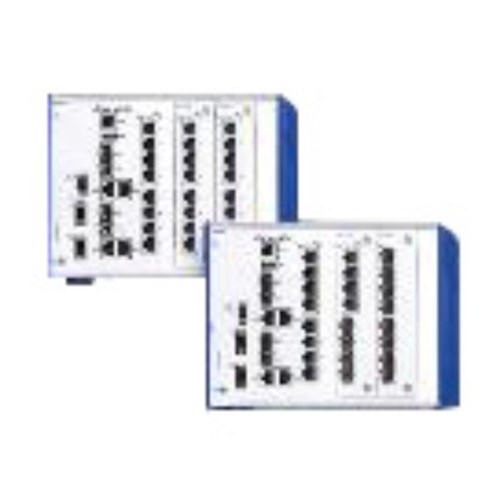

| Product Type |
Switch |
| Brand |
Hirschmann |
| Series |
RSPE |
| Input Voltage |
1 x 60-250 V DC (48-320 V DC) and 110-230 V AC (88-265 V AC) |
| Rated Voltage |
60-250 VDC |
| Redundancy |
Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2), RSTP 802.1D-2004 (IEC62439-1), RSTP Guards, HIPER-Ring (Ring Switch), HIPER-Ring over Link Aggregation, MRP over Link Aggregation, MSTP (802.1Q), Redundant Network Coupling, Sub Ring Manager |
| Connectors/Input/Output |
4 x Fast/Gigbabit Ethernet Combo ports plus 8 x Fast Ethernet TX ports expandable with two slots for media modules with 8 Fast Ethernet ports each |
| Mounting |
DIN Rail |
| Depth |
120 mm |
| Height |
164 mm |
| Weight |
2.2 Kg |
| Width |
209 mm |
| Operating Temperature |
0-+60 °C |
| IP Rating |
IP20 |
| Communication |
EtherNet (FE-24 x 10/100 Mbit/s, GE-4 x 10/100/1000 Mbit/s, Combo Ports-04x(10/100/1000 Mbit/s) |
| Total Ports |
12 |
| Traffic Management |
CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports, IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Jumbo Frames, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p), Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, Unknown Multicast Filtering, VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN, Double VLAN Tagging (QinQ), GARP Multicast Registration Protocol (GMRP), GARP VLAN Registration Protocol (GVRP), IP Ingress DiffServ Classification and Policing, IP subnet-based VLAN, MAC-based VLAN, Protocol-based VLAN |
| Network Management |
Dual Software Image Support, HTTP, HTTPS, IPv6 Management, LLDP (802.1AB), LLDP-MED, SCP, SFTP, SNMP v1/v2/v3, SNMPv3 Traps, SSHv2, Telnet, TFTP, Traps, V.24, DNS Client, ITxPT Module Inventory, OPC-UA Server, Service Discovery (bonjour), SNMPv1/v2 Read-Only |
| Standards and Approvals |
CE, FCC, RCM, EN61131
IEC61850-3, IEEE1613 |
