Specifications

Product Type	Switch
Brand	Hirschmann
Series	RSPS
Development Software	HiOS 07.1.08
Input Voltage	2 x 24/36/48 V DC (18 -60 V DC)
No. of Ethernet Ports	4
Communication Ports	6
Rated Power	9 W
Rated Voltage	60 VDC
Redundancy	Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Client, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Manager, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards, Fast MRP (IEC62439-2), High Availability Seamless Redundancy Protocol (HSR) (IEC62439-3), Parallel Redundancy Protocol (PRP) (IEC62439-3)
Connectors/Input/Output	6 x Twisted Pair / RJ45 (10/100 Mbit/s)
Mounting	DIN Rail
Mounting Type	DIN Rail
Depth	120 mm
Height	164 mm
Weight	1.18 Kg
Width	90 mm
Operating Temperature	0-+60 °C
IP Rating	IP20
Total Ports	6
Traffic Management	CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p), Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, Unknown Multicast Filtering, VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN
Network Management	TFTP, SFTP. SCP. LLDP (802.1AB), LLDP-MED, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet
Standards and Approvals	CE, FCC, EN61131

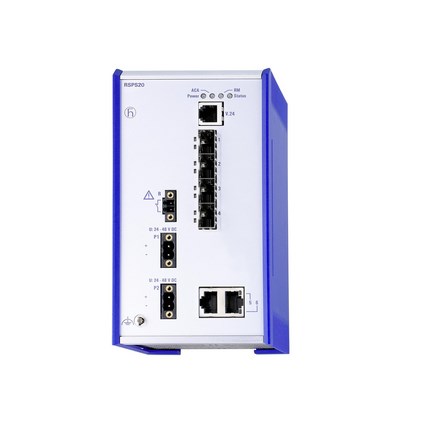

Hirschmann 942 094-999-002 Managed DIN Rail Switch 60VDC
