Product Code: 942 133-999-004

Specifications

Product Type	Switch
Brand	Hirschmann
Series	Octopus
Development Software	HiOS Layer 2 Standard
Input Voltage	2 x 24 VDC (16.8 .. 30 VDC)
Rated Voltage	16.8-45 VDC
Switch Type	Switch - Managed
Redundancy	Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2), RSTP 802.1D-2004 (IEC62439-1), RSTP Guards
Connectors/Input/Output	TP-cable, auto-crossing, auto-negotiation, auto-polarity. Uplink ports 10/100/1000BASE-TX, M12 "X"-coded, 8-pins ; Local ports 10/100BASE-TX M12 "D"-coded, 4-pin
Mounting	Wall Mount
Depth	95 mm
Height	186 mm
Weight	3.5 Kg
Width	261 mm
Operating Temperature	-40-+70 °C
IP Rating	IP65 / IP67
Total Ports	20
Traffic Management	CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports, IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Jumbo Frames, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p), Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, Unknown Multicast Filtering, VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN
Network Management	Dual Software Image Support, HTTP, HTTPS, LLDP-MED, SFTP. SCP. LLDP (802.1AB), SNMP v1/v2/v3, SNMPv3 Traps, SSHv2, Telnet, TFTP, Traps, V.24, IPv6 Management
Standards and Approvals	CE; FCC; EN61131 EN60950-1 IEC 62443-4-2 Security Level 1

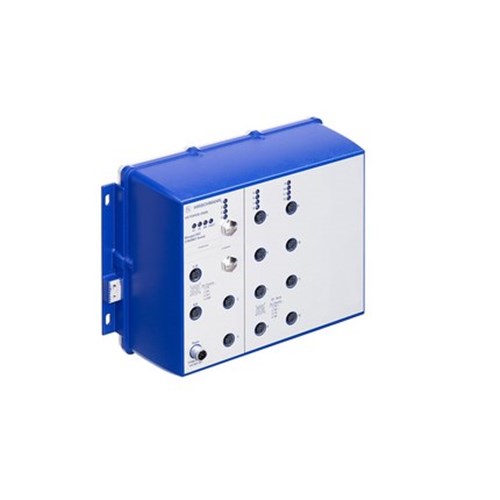

Hirschmann 942 133-999-004 Managed Ethernet Switch 16.8-45VDC

Product Code: 942 133-999-004
