Specifications

Product Type	Firewall
Brand	Hirschmann
Series	OpenBAT-R / -F
Development Software	WLAN Controller, Industrial HiVision, LANConfig
Connectors	3 × N socket for each WLAN module
Rated Power	max. 10 W
Rated Voltage	24 VDC (16.8-32 VDC)
Material	metal
Mounting Type	Wall mounting. Mast/Pole mounting – set available separately.
Depth	56 mm
Height	202 mm
Weight	2000 g
Width	261 mm
Storage Temperature	-40-+85 °C
Operating Temperature	-40-+70 °C
IP Rating	IP65 / IP67
Port Type	First Ethernet: 8-pin, X-coded M12
Radio Frequency	WLAN Supports 2.4 GHz and 5 GHz: 2400 -2483.5 MHz (ISM) and 5170 -5850 MHz
Modulation	20M0F7D (DSSS/OFDM) @ 2.4 GHz, 20M0G7D (OFDM) @ 5 GHz, MCS 0 - MCS23
Radio Features	Integrated ESD protection, Clear Space®. 3x3 MIMO (configurable). Up to 3 streams (configurable)
Encryption	Open, WEP, 802.11i - WPA/WPA2 - Personal (PSK), 802.11i - WPA/WPA2 - Enterprise (802.1X: TLS, TTLS/PAP, TTLS/CHAP, TTLS/MSCHAP, TTLS/MSCHAPV2, TTLS/MD5, PEAP/MSCHAPV2)
Communication Protocols	IEEE 802.11a/b/g/n WLAN interface as per IEEE 802.11n, up to 450 Mbit/s gross bandwidth
Standards and Approvals	EN 60950-1 EN 300 328 (2.4 GHz), EN 301 893 (5 GHz), EN 302 502 (5.8 GHz)

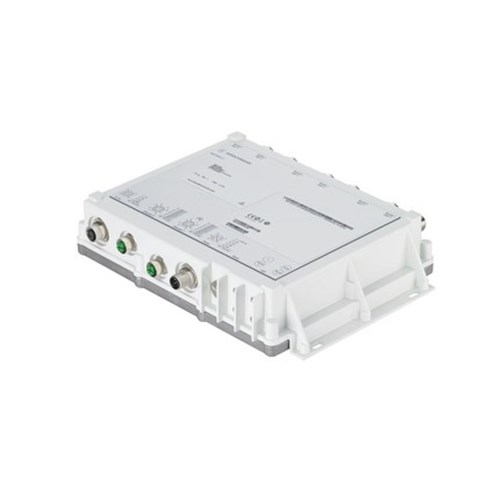

Hirschmann 942 142-999-002 Wireless Access Point
