Specifications

Product Type	Media Module
Brand	Hirschmann
Series	MACH4x00
Diagnostics	LEDs (power, link status, data)
Rated Power	15 W
Rated Voltage	power supply via the backplane of the switch
Connectors/Input/Output	12 x 10/100/1000 Mbit/s RJ45 sockets für TP cable, auto-crossing, auto-negotiation, auto-polarity
Mounting Type	Plug-in device
Depth	23 mm
Height	334 mm
Weight	0.65 kg
Width	220 mm
Operating Temperature without Derating	0-+60 °C
Relative Humidity (Without condensation)	10-95 %
Humidity	10-95%
Storage Temperature	-40-+70 °C
Operating Temperature	0-+60 °C
IP Rating	IP20
Standards and Approvals	cUL61010-1/-2-201, EN60950-1

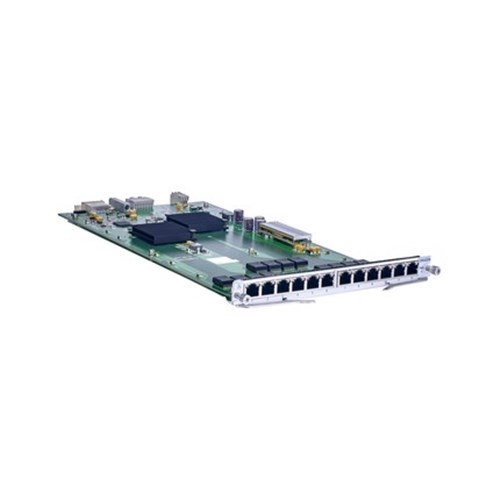

Hirschmann 942 155-001 Rack Mount Switch (12) Fast Ethernet/Gigabit Ethernet TX
