Specifications

Product Type	Ethernet Transceiver
Brand	HIRSCHMANN
Power Consumption	1 W
Connector Type	LC
Network Size (Length Of Cable)	- 0 to 5 km, 1310 nm; 8.5 dB link budget; 0.55 dB/km; GR-253 CORE (Single mode fiber (SM) 9/125 µm)
Interface Type	SFP
Data rate	2500 Mbit/s
Mounting Type	SFP+ slot
Depth	56.5 mm
Height	8.5 mm
Weight	30 g
Width	13.4 mm
Storage Temperature	-40 to +85 ºC
Operating Temperature	-40 to +85 ºC
IP Rating	IP20
Standards and Approvals	EN60950
Transmission Media	Fiber

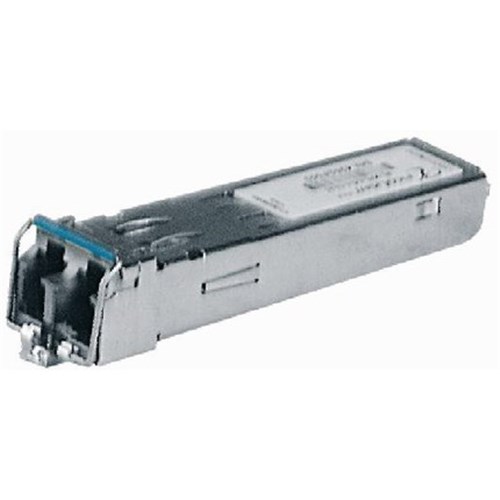

Hirschmann 942 163-001 SFP Fiber Optic Singlemode Ethernet Transceiver 1 x 2500 Mbps W/LC connector -Port
