Product Code: 942 170-999-010

Specifications

Product Type	Switch
Brand	Hirschmann
Series	BRS
Input Voltage	2 x 12 VDC ... 24 VDC
No. of Ethernet Ports	4
Communication Ports	6
Rated Power	7 W
Rated Voltage	24 VDC
Redundancy	HIPER-Ring (Ring Switch), Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Client, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Manager, Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards
Connectors/Input/Output	4x 10/100BASE TX / RJ45; 2x 100Mbit/s fiber ; 1. Uplink: 1 x SFP Slot (100 Mbit/s) ; 2. Uplink: 1 x SFP Slot (100 Mbit/s)
Housing Material	PC-ABS
Mounting	DIN Rail
Mounting Type	DIN Rail
Depth	115 mm
Height	138 mm
Weight	0.420 Kg
Width	57 mm
Operating Temperature	0-+60 °C
IP Rating	IP30
Total Ports	6
Traffic Management	CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports per vlan, GARP Multicast Registration Protocol (GMRP), GARP VLAN Registration Protocol (GVRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Jumbo Frames, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p), Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, TSN 802.1Qbv Support on interfaces 1/1 - 1/3., Unknown Multicast Filtering, VLAN (802.1Q), Voice VLAN
Network Management	Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, HTTP, HTTPS, IPv6 Management, Traps, SNMP v1/v2/v3, SNMPv3 Traps, Telnet
Standards and Approvals	CE, FCC, EN61131, EN62368-1 IEC 62443-4-2 Security Level 2

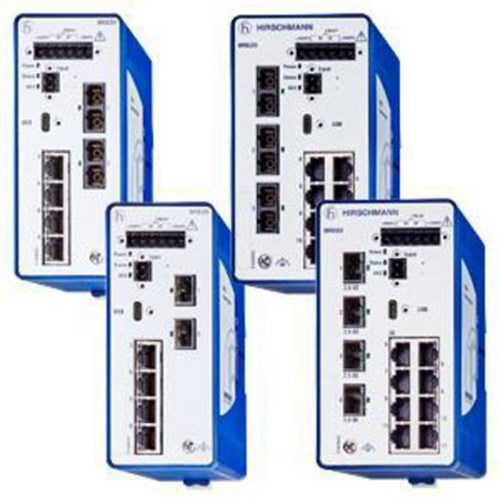

Hirschmann 942 170-999-010 Managed Fast Ethernet Switch 24VDC

Product Code: 942 170-999-010
