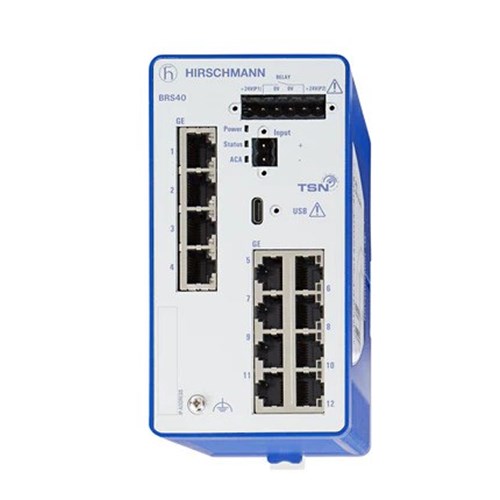

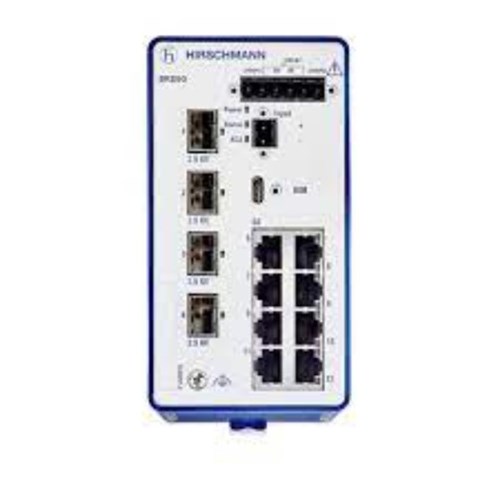

| Product Type |
Switch |
| Brand |
Hirschmann |
| Series |
BRS |
| Input Voltage |
2 x 24 VDC ... 48 VDC and 24 VAC |
| Communication Ports |
8 x 1000 Mbps GE, 4 x 2500 Mbps GE, Uplink 1: 2 x 100/1000/2500 SFP, Uplink 2: 100/1000 SFP |
| Rated Voltage |
(2) 24 VAC |
| Switch Type |
Switch - Managed |
| Redundancy |
HIPER-Ring (Ring Switch), Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Client, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Manager, Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards, HIPER-Ring over Link Aggregation, MRP over Link Aggregation, MSTP (802.1Q), Sub Ring Manager |
| Connectors/Input/Output |
8x 10/100/1000BASE TX / RJ45, 4x 100/1000Mbit/s fiber ; 1. Uplink: 2 x SFP Slot (100/1000 Mbit/s) ; 2. Uplink: 2 x SFP Slot (100/1000 Mbit/s) |
| Housing Material |
Metal |
| Mounting |
DIN Rail |
| Mounting Type |
DIN Rail |
| Depth |
115 mm |
| Height |
140 mm |
| Weight |
1.09 Kg |
| Width |
87 mm |
| Operating Temperature |
-40-+70°C |
| IP Rating |
IP40 |
| Total Ports |
6 |
| Traffic Management |
CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports per vlan, GARP Multicast Registration Protocol (GMRP), GARP VLAN Registration Protocol (GVRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Jumbo Frames, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p), Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, TSN 802.1Qbv Support on interfaces 1/1 - 1/3., Unknown Multicast Filtering, VLAN (802.1Q), Voice VLAN, Private VLAN |
| Network Management |
Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, HTTP, HTTPS, IPv6 Management, Traps, SNMP v1/v2/v3, SNMPv3 Traps, Telnet, DNS Client, ITxPT Module Inventory, OPC-UA Server, Service Discovery (bonjour), SNMPv1/v2 Read-Only |
| Standards and Approvals |
CE, FCC, EN61131, EN62368-1
IEC 62443-4-2 Security Level 2 |
