Specifications

Product Type	Firewall
Brand	Hirschmann
Series	OpenBAT-R / -F
Development Software	WLAN Controller, Industrial HiVision, LANConfig
Connectors	2 × RP-SMA Female, requires antennas with RP-SMA Male connectors 10/100/1000Mbit/s
No. of Ethernet Ports	1
Communication Ports	(1) 10/100/1000 Twisted Pair RJ-45
Rated Power	Maximum power consumption : 9 W
Rated Voltage	24 VDC (18-32 VDC)
Material	metal
Mounting Type	DIN-Rail
Depth	123 mm
Height	148 mm
Weight	520 g
Width	50 mm
Storage Temperature	-40-+70 °C
Operating Temperature	-10-+60 °C
IP Rating	IP40
Port Type	Ethernet: 1x RJ45
Radio Frequency	Supports 2.4 GHz and 5 GHz: 2412-2472 MHz and 5180-5825 MHz (regulatory restrictions apply depending on the country of operation)
Modulation	OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM; Note: MCS numbering changed with 11ac. Supported rates with up to 2 streams: MCS0-MCS9. Channel widths: 20MHz, 40MHz and 80MHz
Radio Features	2x2 MIMO (configurable). Up to 2 streams (configurable). Spatial Multiplexing, Cyclic-Delay Diversity (CDD), Low-Density Parity Check (LDPC) Codes, Maximal Ratio Combining (MRC), Space Time Block Code (STBC)
Encryption	Open, WEP, 802.11i - WPA/WPA2 - Personal (PSK), 802.11i - WPA/WPA2 - Enterprise (802.1X: TLS, TTLS/PAP, TTLS/CHAP, TTLS/MSCHAP, TTLS/MSCHAPV2, TTLS/MD5, PEAP/MSCHAPV2)
Communication Protocols	IEEE 802.11a/b/g/n/ac WLAN interface as per IEEE 802.11ac
Standards and Approvals	ACMA IEC 62368-1:2014 EN 50121-4 EN 300 328 (2.4GHz), EN 301 893 (5GHz)

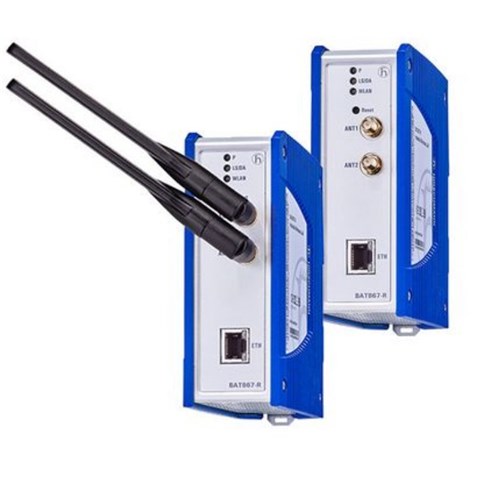

Hirschmann 942 183-999-002 Wireless Access Point 24VDC
