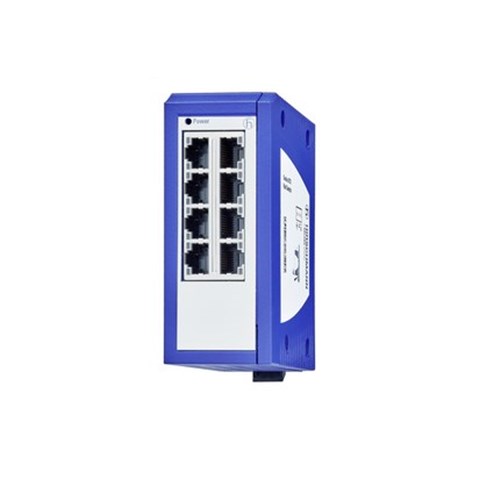

Hirschmann 942 291-301 Ethernet Switch 18-32VDC

Product Code: 942 291-301

  • Efficient 3.9 W power consumption
  • Operates on 18-32 VDC voltage range
  • Compact DIN rail mounting design
  • Wide temp range: -40 to 60°C operational
  • Humidity tolerance from 5% to 95%
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Ethernet Switch
Brand HIRSCHMANN
Depth 82 mm
Height 110 mm
Humidity 5-95%
Mounting Type DIN Rail
Number of Pins 3
Operational Temperature -40 to 60 deg C
Rated Power 3.9 W
Rated Voltage 18-32 VDC
Relative Humidity 5-95 %
Software Configuration BOOTP/DHCP, HiDiscovery
Software Diagnostics Device status indication (LEDs), Log-File, RMON (1) statistics, Simple interface statistics, Topology Discovery according to IEEE 802.1AB;(LLDP), Syslog
Software Management HTML5 Web-Interface, TFTP config file/firmware transfer, SNMP V1/V2/V3
Software Redundancy RSTP (IEEE 802.1D-2004), MRP Client
Software Security SNMPv3 (authNoPriv), Possibility to disable each port, SSH, SSL
Storage Temperature -40 to 85 deg C
Terminal Type 1 x Plug-In Terminal Block
Transition Type 2 kV Power Line, 2 kV Data Line
Width 45.4 mm

Description

<p>This industrial-grade product is designed for those who value reliability and efficiency in their electrical systems. With a rated power of 3.9 watts, this unit operates within a voltage range of 18 to 32 volts DC, making it versatile enough to fit various applications within the electrical engineering and automation sectors.</p><p>The device is engineered for DIN rail mounting, which simplifies installation and ensures compatibility with standard equipment racks. Its compact dimensions—45.4 mm in width, 110 mm in height, and 82 mm in depth—allow it to fit snugly into tight spaces without compromising on performance.</p><p>One of the standout features of this product is its resilience across a wide range of environmental conditions. It can function optimally in operational temperatures ranging from -40&amp;#176;C to 60&amp;#176;C, making it suitable for both extreme cold and hot environments often encountered in industrial settings. Furthermore, its storage temperature tolerance extends from -40&amp;#176;C up to an impressive 85&amp;#176;C.</p><p>Humidity resistance is another key aspect; the device can operate effectively in environments with humidity levels between 5% and 95%. This makes it ideal for use in areas where moisture levels fluctuate significantly or where high humidity could otherwise pose challenges.</p><p>Whether you&amp;#39;re integrating this component into new systems or retrofitting existing setups, it&amp;#39;s built to deliver consistent performance over time. The robust construction ensures that even under demanding conditions, you won&amp;#39;t have to worry about frequent replacements or maintenance interruptions.</p><p>In summary, this product offers a blend of durability and flexibility that meets the rigorous demands of professional environments while being easy to install due to its DIN rail compatibility. It&amp;#39;s an excellent choice for those seeking a reliable solution that can withstand harsh operating conditions without sacrificing efficiency or longevity.</p>
