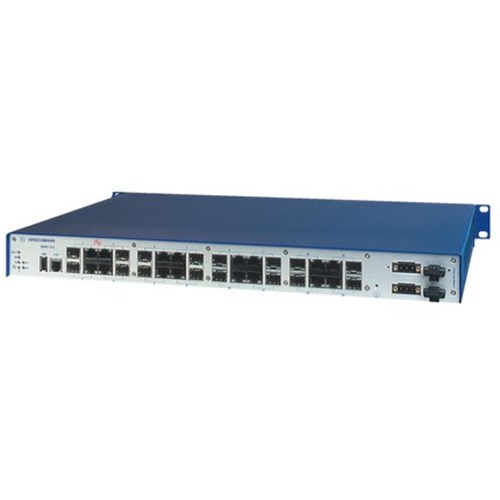

| Product Type |
Switch |
| Brand |
Hirschmann |
| Series |
MAR1030 |
| No. of Ethernet Ports |
12 |
| Communication Ports |
12 |
| Electrical Connection |
Power supply 1: power supply 3-pin spring clip, signal contact 2-pin spring clip ; Power supply 2: not assembled |
| Rated Power |
max. 38.5 W |
| Rated Voltage |
Power supply 1: 24/36/48 VDC ; Power supply 2: not assembled |
| Redundancy |
Advanced Ring Configuration for MRP, Fast HIPER-Ring, HIPER-Ring (Manager), HIPER-Ring (Ring Switch), Link Aggregation with LACP, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Client, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Manager, MSTP (802.1Q), Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards, RSTP over MRP, Sub Ring Manager |
| Mounting Type |
19" control cabinet |
| Depth |
310 mm |
| Height |
44 mm |
| Weight |
4.0 kg |
| Width |
448 mm |
| Storage Temperature |
-40-+85 °C |
| Operating Temperature |
-40-+85 °C |
| IP Rating |
IP30 |
| Port Type |
In total 4 Gigabit and 12 Fast Ethernet ports \\\ GE 1 - 4: 1000BASE-FX, SFP slot \\\ FE 1 and 2: 10/100BASE-TX, RJ45 \\\ FE 3 and 4: 10/100BASE-TX, RJ45 \\\ FE 5 and 6: 10/100BASE-TX, RJ45 \\\ FE 7 and 8: 10/100BASE-TX, RJ45 \\\ FE 9 and 10: 10/100BASE-TX, RJ45 \\\ FE 11 and 12: 10/100BASE-TX, RJ45 |
| USB Port |
1 x USB to connect auto-configuration adapter ACA21-USB |
| Traffic Management |
Disable Learning (hub functionality), Double VLAN Tagging (QinQ), Egress Broadcast Limiter per Port, Fast Aging, Flow Control (802.3X), GARP Multicast Registration Protocol (GMRP), GARP VLAN Registration Protocol (GVRP), IGMP Snooping/Querier (v1/v2/v3), Independent VLAN Learning, Jumbo Frames, QoS / Port Prioritization (802.1D/p), Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, VLAN (802.1Q), Voice VLAN |
| Network Management |
Dual Software Image Support, TFTP, LLDP (802.1AB), LLDP-MED, SSHv1, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet |
| Standards and Approvals |
CE, FCC, EN61131
cUL 508
ISA 12.12.01 Class 1 Div. 2
EN50121-4
NEMA TS2 |
