Specifications

Product Type	Switch
Brand	Hirschmann
Rated Voltage	2 x 24/36/48 VDC (16.8 .. 60 VDC)
Mounting Type	Wall mounting
Depth	95 mm
Height	186 mm
Weight	3.5 kg
Width	261 mm
Storage Temperature	-40-+85 °C
Operating Temperature	-40-+70 °C
IP Rating	IP65 / IP67
Port Type	20 ports in total; ; TP-cable, auto-crossing, auto-negotiation, auto-polarity. Uplink ports 10/100BASE-TX M12 "D"-coded, 4-pins with bypass relays ; Local ports 10/100BASE-TX M12 "D"-coded, 4-pin ; 12 x PoE(+) Ports (phantom power)
Standards and Approvals	CE; FCC; EN61131 EN60950-1 IEC 62443-4-2 Security Level 1

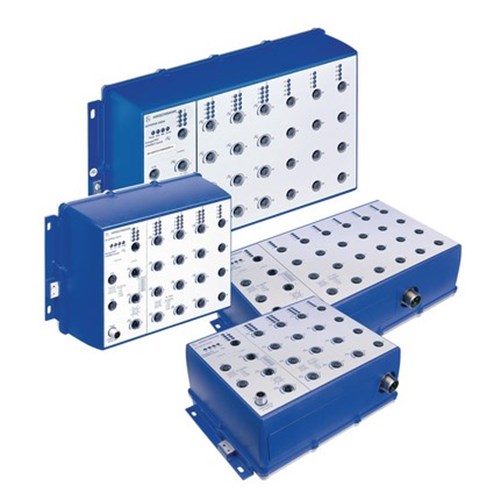

HIRSCHMANN IP67 MANAGED SWITCH 942 133-999-002
