Specifications

Product Type	Switch
Brand	Hirschmann
Rated Voltage	2 x 24 VDC (16.8 .. 30 VDC)
Mounting Type	Wall mounting
Depth	95 mm
Height	186 mm
Weight	3.5 kg
Width	261 mm
Storage Temperature	-40-+85 °C
Operating Temperature	-40-+70 °C
IP Rating	IP65 / IP67
Port Type	12 ports in total; ; TP-cable, auto-crossing, auto-negotiation, auto-polarity. Uplink ports 10/100BASE-TX M12 "D"-coded, 4-pins ; Local ports 10/100BASE-TX M12 "D"-coded, 4-pin
Standards and Approvals	CE; FCC; EN61131 EN60950-1 EN 50155, EN 45545-2, EN 50121-4 IEC 62443-4-2 Security Level 1

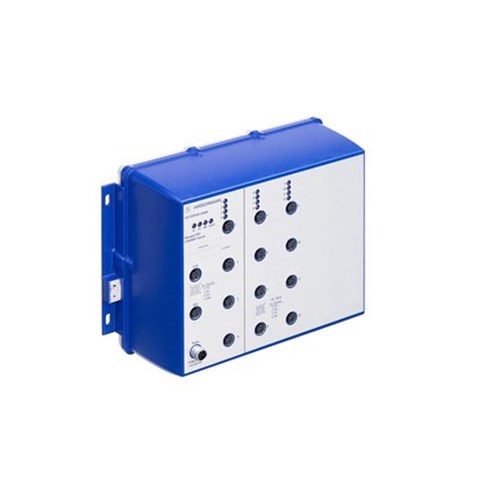

HIRSCHMANN IP67 MANAGED SWITCH 942 133-999-003
