Specifications

Product Type	Switch
Brand	Hirschmann
Series	OCTOPUS
Input Voltage	12 / 24 / 36 VDC (9,6 .. 45 VDC)
Connectors/Input/Output	8 ports in total uplink ports: 10/100 BASE-TX, M12 "D"-coding, 4-pole 8 x 10/100 BASE-TX TP-cable, auto-crossing, auto-negotiation, auto-polarity.
Mounting	DIN rail
Depth	31 mm
Height	200 mm
Weight	470 g
Width	60 mm
Operating Temperature	-40-+70 °C
IP Rating	IP65, IP67
Total Ports	16
Standards and Approvals	CE, EAC, Australian Regulatory Compliance Mark (RCM) cUL61010-2-201 EN62368 ISA 12.12.01 Class 1 Div. 2 EN 50155, EN 45545-2, EN 50121-4 E1

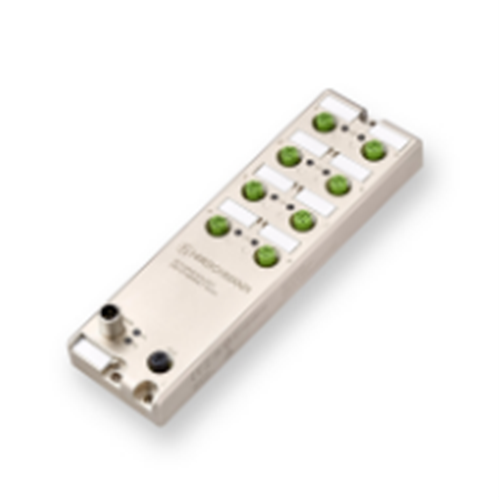

HIRSCHMANN UNMANAGED IP67 SWITCH 942 150-001
