Specifications

Product Type	Enclosure
Brand	IDE
Series	MSB
Rated Operational Voltage (AC/DC)	1000 V AC / 1500 V DC
Colour	RAL7035 grey
Material	Cold-rolled steel EN10130+A13
No. of Locks	3
Depth	300 mm
Height	1000 mm
Width	1400 mm
Operating Temperature	-25 ºC / +60 ºC
IP Rating	IP55
Standards and Approvals	Compliant with the Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (as applicable). UL508A and Gost-R certificates. Bureau Veritas according to UNE-EN 62208 standards. certificate for boats.

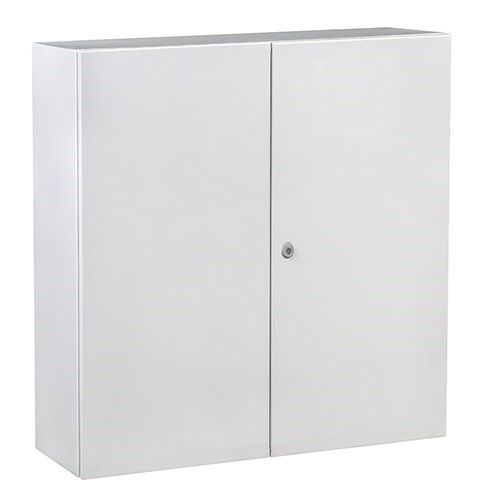

IDE MSB101430DDG Mild Steel Enclosure Cold Rolled Steel 1400W 1000H 300D RAL7035 Light Grey IP55
