Specifications

Product Type	Mild Steel Enclosure
Brand	IDE
Ambient Temperature	-25 to 60 deg C
Application	Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts
Cable Entry	65 mm H x 120 mm W
Colour	Light Grey RAL 7035
Degree of Protection	IP66
Depth	150 mm
Door Profiles	1
Door Type	Single/Double Reversible
Finish	Coated with Primer, Hardened Polyester Paint, Textured with UV Protection
Gasket Material	Polyurethane
Height	300 mm
Lock Type	5 mm Double-Bit Lock, (1) 1-Point Lock
Material	Cold Rolled Steel
Maximum Cabinet Load	150 kg
Maximum Door Load	25 kg
Maximum Mounting Plate Load	125 kg
Mounting Plate Size	150 mm H x 270 mm W x 2 mm D
Mounting Type	Surface
NEMA Rating	NEMA 1, 4, 12
Number of Hinges	2
Number of Locks	1
Rated Impact Resistance	IK08
Rated Operational Voltage	1000 VAC, 1500 VDC
Standards and Approvals	Directive 2014/35/EU, IEC 61439-1, IEC 62208, UL 508A
Usable Internal Space	250 mm H x 150 mm W x 129 mm D
Wall Fixing Dimensions	210 mm H x 160 mm W
Weight	4.2 kg
Width	200 mm

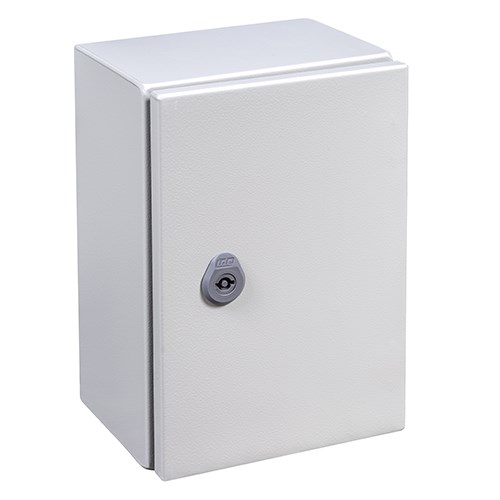

IDE MSB302015G Mild Steel Enclosure Cold Rolled Steel 200W 300H 150D RAL7035 Light Grey IP66
