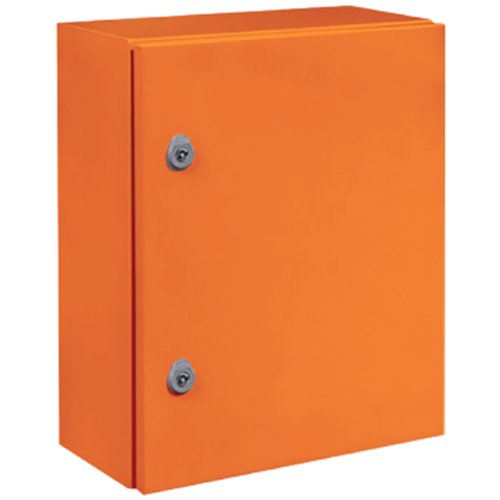

IDE MSB404015A Mild Steel Enclosure Cold Rolled Steel 400W 400H 150D RAL2008 Orange IP66

Product Code: MSB404015A

  • IP66 rated for superior protection
  • Cold rolled steel construction
  • Suitable for 1000VAC/1500VDC applications
  • Complies with IEC and UL standards
  • Reversible single/double door design
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Colour Orange RAL 2008
Degree of Protection IP66
Depth 150 mm
Door Profiles 2
Door Type Single/Double Reversible
Gasket Material Polyurethane
Height 400 mm
Material Cold Rolled Steel
Net Weight 9.1 kg
Number of Hinges 2
Number of Locks 1
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals IEC 62208, IEC 61439-14, UL 508A
Width 400 mm

Description

<p>In the realm of industrial and commercial installations, choosing the right wall-mounting cabinet is crucial for ensuring reliability and safety. This robust wall-mounting cabinet, crafted from cold rolled steel, offers a high degree of protection with its IP66 rating, making it ideal for environments where dust-tight and water-resistant enclosures are needed. Its resilience to challenging conditions is further supported by compliance with international standards such as IEC 62208, IEC 61439-14, and UL 508A.</p><p>Designed for versatility and durability, this cabinet can handle rated operational voltages up to 1000 VAC or 1500 VDC. It’s built to withstand ambient temperatures ranging from -25&amp;#176;C to 60&amp;#176;C, making it suitable for various industrial applications across Australia’s diverse climates.</p><p>The design features a single or double reversible door that allows flexible installation options based on your specific needs. The incorporation of a polyurethane gasket ensures an airtight seal that enhances its protective capabilities against ingress of unwanted elements.</p><p>Measuring at a compact width of 400 mm, height of 400 mm, and depth of 150 mm, this cabinet provides ample space while maintaining a streamlined profile suitable for tight spaces. Weighing in at just 9.1 kg makes it relatively easy to install without compromising structural integrity or performance.</p><p>Adding a touch of visibility and style, the cabinet comes in an eye-catching orange RAL 2008 color. This not only aids in quick identification but also adds an aesthetic element suited for both functional and visual integration into varied settings.</p><p>Whether you’re looking to secure sensitive electronic components or need reliable housing for critical control systems in demanding environments, this wall-mounting cabinet stands out as a dependable choice with its blend of strength, adaptability, and compliance with stringent safety standards.</p>
