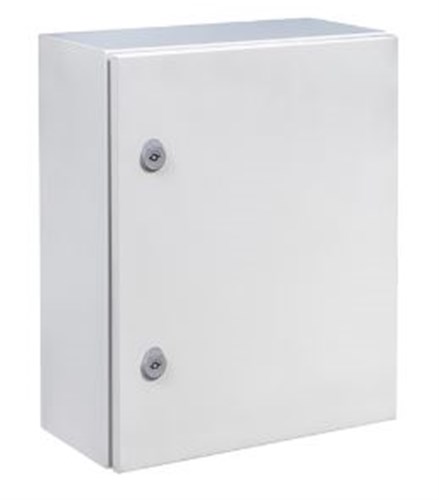

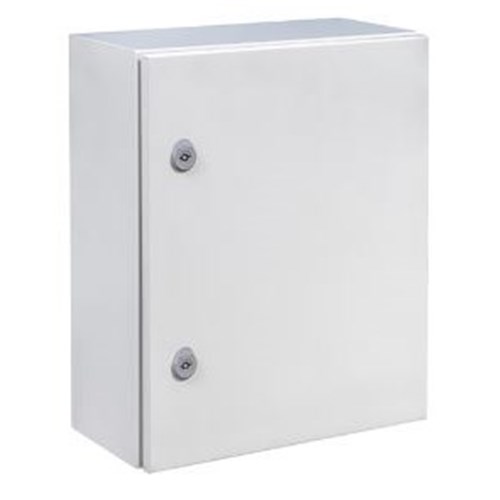

IDE MSB604020G-PT Mild Steel Enclosure Cold Rolled Steel 400W 600H 200D RAL7035 Light Grey IP66

Product Code: MSB604020G-PT

  • IP66 rated for superior protection
  • Made from durable cold rolled steel
  • Operates in -25 to 60°C environments
  • Compliant with IEC and UL standards
  • Reversible single/double door design
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Colour Light Grey RAL 7035
Degree of Protection IP66
Depth 200 mm
Door Profiles 2
Door Type Single/Double Reversible
Gasket Material Polyurethane
Height 600 mm
Material Cold Rolled Steel
Net Weight 14.1 kg
Number of Hinges 2
Number of Locks 2
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals IEC 62208, IEC 61439-39, UL 508A
Width 400 mm

Description

<p>For professionals in the electrical engineering and automation sectors, finding a reliable enclosure solution that meets rigorous standards is crucial. This wall-mounting cabinet offers robust protection and versatility, making it an ideal choice for industrial and commercial applications.</p><p>Constructed from cold-rolled steel, this cabinet provides durability while maintaining a sleek appearance with its light grey RAL 7035 finish. With dimensions of 400 mm in width, 600 mm in height, and 200 mm in depth, it fits seamlessly into various installations without occupying excessive space. Despite its sturdy build, the cabinet remains manageable with a net weight of just 14.1 kg.</p><p>Designed to withstand challenging environments, this cabinet boasts an impressive degree of protection rated at IP66. This ensures complete dust-tightness and powerful water jet resistance—ideal for both indoor and outdoor use where exposure to harsh conditions is expected. The operational voltage ratings of up to 1000 VAC and 1500 VDC further enhance its suitability for high-demand electrical systems.</p><p>The ambient temperature range between -25 to 60 degrees Celsius allows this enclosure to function reliably across diverse climates—from chilly warehouses to warmer industrial settings—without compromising performance or safety.</p><p>Standards compliance is non-negotiable in technical applications; hence this cabinet adheres to IEC 62208, IEC 61439-39, and UL 508A certifications. These approvals affirm its quality construction and assure compatibility with international safety requirements—a critical factor when integrating into existing systems or planning new projects.</p><p>Flexibility is another hallmark feature: the door can be configured as either single or double reversible depending on specific access needs or spatial constraints within your installation site. The polyurethane gasket material further enhances sealing effectiveness against environmental ingress while ensuring long-lasting resilience against wear over time.</p><p>In summary, whether you&amp;#39;re managing complex electrical setups or streamlining automation processes—this wall-mounting cabinet stands out as a reliable partner offering protection efficiency flexibility all wrapped up in one well-designed package suitable for Australian technical audiences seeking dependable solutions tailored precisely towards their practical requirements.</p>
