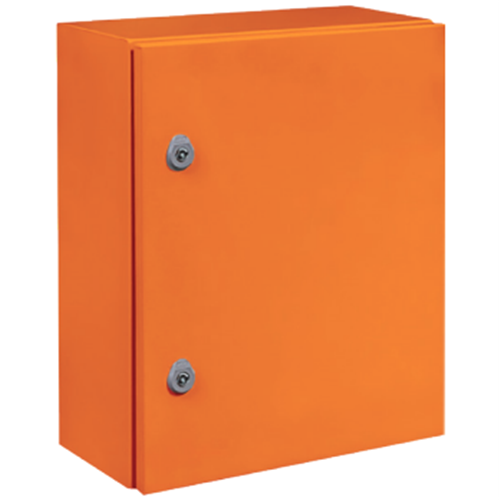

IDE MSB801030A Mild Steel Enclosure Cold Rolled Steel 1000W 800H 300D RAL2008 Orange IP66

Product Code: MSB801030A

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Colour Orange RAL 2008
Degree of Protection IP66
Depth 300 mm
Door Profiles 2
Door Type Single/Double Reversible
Gasket Material Polyurethane
Height 800 mm
Material Cold Rolled Steel
Number of Hinges 2
Number of Locks 2
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals IEC 62208, IEC 61439-64, UL 508A
Width 1000 mm

Documents

IPD Product Catalogue V17
