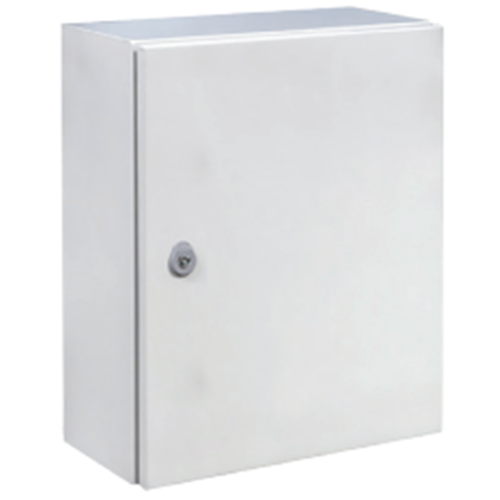

IDE MSB806020G-PT Mild Steel Enclosure Cold Rolled Steel 600W 800H 200D RAL7035 Light Grey IP66

Product Code: MSB806020G-PT

  • Wall-mount cabinet with IP66 protection
  • Suitable for 1000 VAC, 1500 VDC applications
  • Durable cold rolled steel construction
  • Flexible single/double reversible door design
  • Operates in -25 to 60°C environments
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Colour Light Grey RAL 7035
Degree of Protection IP66
Depth 200 mm
Door Profiles 2
Door Type Single/Double Reversible
Gasket Material Polyurethane
Height 800 mm
Material Cold Rolled Steel
Number of Hinges 3
Number of Locks 2
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals IEC 62208, IEC 61439-78, UL 508A
Width 600 mm

Description

<p>When selecting a wall-mounting cabinet for your industrial or commercial needs, it&amp;#39;s essential to consider the product&amp;#39;s specifications and standards to ensure it meets your technical requirements. This particular wall-mounting cabinet stands out with its robust design and adherence to international standards.</p><p>Constructed from durable cold rolled steel, this cabinet is designed to withstand demanding environments. It offers a high degree of protection with an IP66 rating, ensuring that it is dust-tight and protected against powerful water jets. This makes it suitable for both indoor and outdoor installations where exposure to harsh conditions might be a concern.</p><p>The cabinet operates efficiently within a wide range of temperatures, from -25&amp;#176;C to 60&amp;#176;C, making it versatile enough for various climates across Australia. Its light grey finish in RAL 7035 not only provides an aesthetically pleasing appearance but also helps reflect sunlight, reducing heat absorption when installed outdoors.</p><p>Measuring 600 mm in width, 800 mm in height, and 200 mm in depth, this cabinet provides ample space for housing electrical components while maintaining a compact profile that saves on installation space. The door design is particularly flexible; you can choose between single or double reversible doors based on your accessibility needs during installation or maintenance activities.</p><p>A key feature of this cabinet is its gasket material made from polyurethane. This ensures excellent sealing properties over time without degradation from environmental factors like temperature fluctuations or UV exposure.</p><p>In terms of compliance and safety, the cabinet meets several critical standards: IEC 62208 specifies general requirements for empty enclosures; IEC 61439-78 relates to low-voltage switchgear and control gear assemblies; UL 508A covers industrial control panels intended for general industrial use. These certifications highlight the product&amp;#39;s reliability and suitability for professional applications requiring rigorous safety measures.</p><p>With these features combined into one well-engineered package, this wall-mounting cabinet presents itself as a reliable choice for professionals seeking durability and performance without compromise on quality or compliance.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
