Specifications

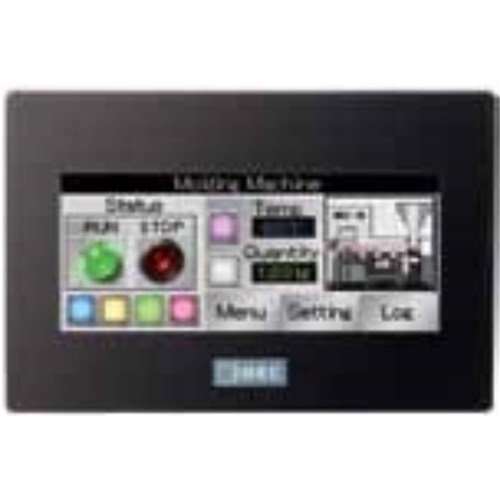

Product Type	HMI + PLC
Brand	IDEC
Series	SmartAXIS
Analog Resolution	10-bit
Digital Inputs	8
Digital Outputs	6
Output Ratings	0 to 10V DC (voltage output) /4 to 20mA (current output)
Analog Outputs	2
Input Ratings	0 to 10V DC (voltage input) /4 to 20mA (current input)
Input Type	Sink
Output Type	Transistor Source
Power Consumption	10.1W
Supply Voltage	24V DC
Memory Interface	USB-A, USB-mini B, RS232C, RS422/485 Ethernet
Analog Inputs	2
Sunlight Readable	No (400cd/m²)
Colour	Black
Display	TFT Colour LCD
Display Colour	65536 Colors
Mounting Method	Panel mount
Display Size	3.8-inch
Storage Temperature	–20 to 60°C
Operating Temperature	-20 to 55°C
IP Rating	IP66f (Panel front), IP20 (Rear)
Ethernet Ports	1
Expandable Communications	Remote I/O, Analog Expansion Cartridges
Fieldbus Interface	Modbus TCP and Modbus RTU
Serial Ports	1
USB Port	2
Supported Ethernet Protocols	Modbus TCP, Remote Ethernet Communication
Supported Serial Protocols	Modbus RTU
Touch Type	Analog resistive membrane
Hazardous Location Ratings	Class I Division 2
Compliance Standards	IEC/EN 61131-2, UL1007
