Specifications

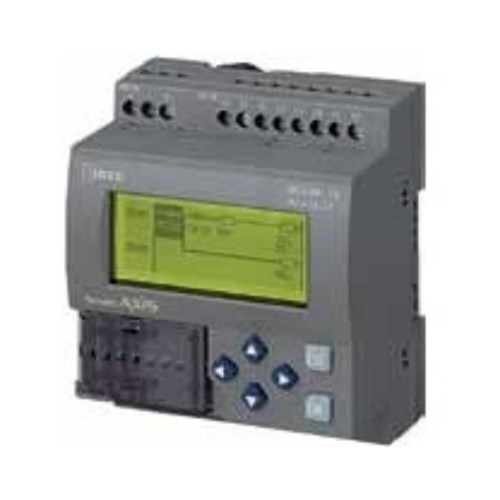

Product Type	Programmable Controller
Brand	IDEC
Series	SmartAXIS
Development Software	Automation Organizer Software Suit
Analog Resolution	10bit
Digital Inputs	8
Digital Outputs	4
No. of Analog Inputs	2
No. of Digital Inputs	6
Output Ratings	250V AC/10A 30V DC/10A
Input Ratings	Digital: 24 V DC Analog: 10 V DC
Input Type	Digital/Analog
Output Type	Relay
Power Consumption	4.3 W
Supply Voltage	24 V DC
Terminal Type	Screw Terminal
Analog Inputs	2
Mounting Method	DIN Rail / Direct Mounting
Depth	60 mm
Height	90 mm
Width	76 mm
Storage Temperature	-25 °C - 70 °C
Operating Temperature	0 °C - 55 °C
IP Rating	IP66F/IP20
Ethernet Ports	1
Expandable Communications	Yes
USB Port	1
Hazardous Location Ratings	Class I Division 2
Compliance Standards	UL508 CSA C22.2 No.142 (c-UL)
