Specifications

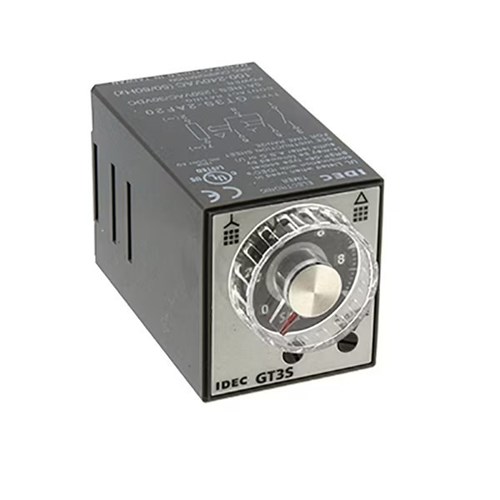

Product Type	Multi-Function Timer
Brand	IDEC
Series	GT3
Contact Type	Star:Delayed SPST-NO Delta: Delayed SPST-NO Instantaneous SPST-No
Timing Range	0.05s to 100s
Contact Configuration	Star: SPST-NO Delta:SPST-NO SPST-No
Rated Current	5A
Rated Voltage	100 to 240V AC
Terminal Type	Pin
Depth	72.5mm
Height	40mm
Width	36mm
Pollution Degree	2
Operating Temperature	-10 to 50 deg C
IP Rating	IP40 (timer), IP20 (socket)
Ambient Temperature	-10 to +50°C
Standards and Approvals	CE, cUL File E55996, UL
