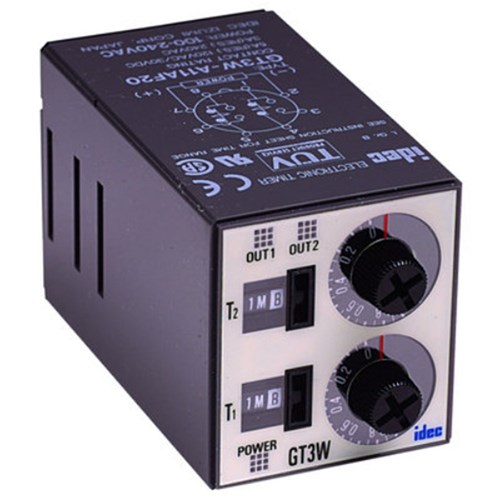

IDEC GT3W-A11AF20N Multi-Function Timer Delayed DPDT 100-240VAC

Product Code: GT3W-A11AF20N

1

Specifications

Product Type	Multi-Function Timer
Brand	IDEC
Series	GT3
Contact Type	Delayed
Timing Range	0.1s to 6h
Contact Configuration	2 SPDT
Rated Current	5A
Rated Power	2.6 VA, 5.1 VA
Rated Voltage	100 to 240V AC
No. of Pins	8
Depth	70mm
Height	40mm
Width	36mm
Pollution Degree	2
Operating Temperature	-30 to 70 deg C
IP Rating	IP40 (timer), IP20 (socket)
Ambient Temperature	-10 to +50°C
Standards and Approvals	EN61812-1:2011, ENIEC 63000:2018

Documents

IPD Product Catalogue V17

IDEC Catalogue

Instructions

Certificate

EU Declaration of Conformity

UL Certification
