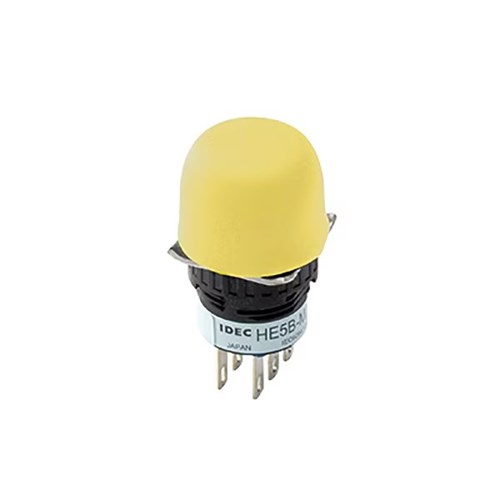

IDEC HE5B-M2PY Enabling Switch 2NO

Product Code: HE5B-M2PY

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Enabling Switch
Brand IDEC
Bezel Colour Yellow
Colour Yellow
Contact Configuration 2NO
Degree of Protection IP65
Humidity 45-85%
Insulation Resistance 50 MOhm
Mechanical Life 1 million Operations
Operational Temperature -25 to 60 deg C
Rated Insulation Voltage 125 V
Rated Thermal Current 3 A
Shock Resistance 150 g/ms
Standards and Approvals CSA C22.2 # 14, GB/T14048.5, IEC/EN60947-5-1 UL508, IEC/EN60947-5-8
Storage Temperature -40 to 80 deg C
Terminal Type Solder
Tightening Torque 0.29-0.49 N-m
Vibration Resistance 5-55 Hz
Weight 8 g

Documents

IPD Product Catalogue V17
IDEC Catalogue
Instructions

Certificate

cUL_Certification
EU Declaration of Conformity
